Western Enterprises

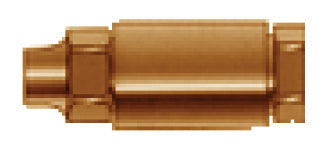

1/4 INCH (IN) FEMALE NATIONAL PIPE THREAD (FNPT) X 1/4 INCH (IN) FEMALE NATIONAL PIPE THREAD (FNPT) FLASHBACK ARRESTOR BODY (ITEM # FA-2)

1/4 INCH (IN) FEMALE NATIONAL PIPE THREAD (FNPT) X 1/4 INCH (IN) FEMALE NATIONAL PIPE THREAD (FNPT) FLASHBACK ARRESTOR BODY (ITEM # FA-2)

Part numberITEM # FA-2
SKUITEM # FA-2

Flashback Arrestor Bodies and Assemblies are available for special applications. Flashback Arrestor Bodies consist of 1/4" F and 1/4" M NPT connections. Assemblies for Adapters and Pigtails consist of standard CGA connections on both the inlet and outlet sides of a Flashback Arrestor Body. Western also offers assemblies with ball seat check valves for the inlet side of the Flashback Arrestor Body.Flashback Arrestor Bodies extinguish flashes or flames before they reach the cylinder. Flashback Arrestor Assemblies are designed for installation on acetylene cylinders to prevent flashbacks into the cylinder.

Read full overview
Quote only Price on request Pricing and commercial terms are confirmed for the selected configuration.

Out of stock

Saved on this browser. Open a product to see current price and availability.
  • Delivery planningConfirm lead time and destination with our team.
  • Technical documentationAsk about datasheets and required certificates.
  • Project procurementSend quantities and specifications for a quotation.
  • Returns informationRead our returns policy
View full details

Specifications

ManufacturerWestern Enterprises
Part numberITEM # FA-2
SKUITEM # FA-2

Technical documentation

Need a datasheet or certificate?

Request the documents required for your exact model and application. Our team can confirm which files are available.

Request product documents →

Product overview

Flashback Arrestor Bodies and Assemblies are available for special applications. Flashback Arrestor Bodies consist of 1/4" F and 1/4" M NPT connections. Assemblies for Adapters and Pigtails consist of standard CGA connections on both the inlet and outlet sides of a Flashback Arrestor Body. Western also offers assemblies with ball seat check valves for the inlet side of the Flashback Arrestor Body.

Flashback Arrestor Bodies extinguish flashes or flames before they reach the cylinder. Flashback Arrestor Assemblies are designed for installation on acetylene cylinders to prevent flashbacks into the cylinder.

Specifications

Field Industrial
Pressure Rating 500 psig
Connection Size 1/4 x 1/4 in
Connection Type Female National Pipe Thread (FNPT) x Female National Pipe Thread (FNPT)
Industrial Certification Underwriters Laboratories (UL) Listed


Additional Information

Additional Information These Flashback Arrestor Bodies/Assemblies can be used in any leads not exceeding 3/8" pipe size which connects an acetylene cylinder to a regulator, manifold or other equipment. These units are factory assembled and 100% tested.


Prop 65

Warning This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.


Note

Note Using Flashback Arrestors with Check Valves as a precaution to avoid potentially dangerous situations is not a substitute for careful handling or strict adherence to safety rules and procedures for handling high pressure gases. Users should not tamper with the internal components of a Flashback Arrestor. Flashback Arrestors cannot be cleaned or refilled after any flash in the system. They must be replaced if the pressure drop through the Arrestor reaches 10 PSIG or more at a rated capacity of 40 SCFH.
