Specifications
| Manufacturer | Arcair |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
--------------

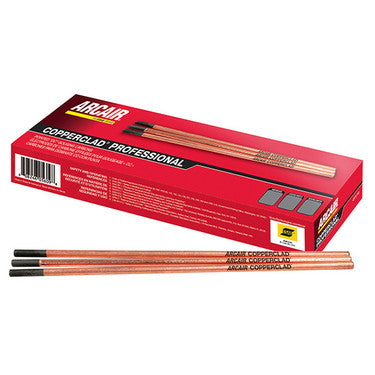

POINTED COPPERCLAD DC ELECTRODES
A standard, all purpose gouging electrode. Its controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.
POINTED PLAIN DC ELECTRODES
General purpose electrodes without the copper plating to avoid any chance of copper contamination in the base material. Same high quality blend of carbon and graphite used in other electrodes.
POINTED COPPERCLAD AC ELECTRODES
Designed for use with A.C. power supplies. Rare earth material is added to the electrodes to stabilize the arc and enhance the operating characteristics. 305 mm (12 in.) long.
FLAT COPPERCLAD DC ELECTRODES
Specially designed for close tolerance metal removal and scarfing applications. Excellent for general gouging applications, removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
HALF ROUND COPPERCLAD DC ELECTRODES
Versatility of having both a round and flat electrode for the various gouging applications. Excellent for removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
Type: Manual Gouging
Application: Copper clad - pointed, flat, and half-round DC and AC
Carbon Range: 1/4 - 5/8 in. dia. x 12 in. length
Highlights:
--------------
Designed specifically for the air carbon-arc process
Contain a precise formulated blend of carbon and graphite
Produces the most efficient metal removal performance in today’s market
Superior metal removal rates, cool operation, and uniform diameters
Ideal for a broad range of applications
Creating u-grooves for weld joint
Removing old welds
Gouging out cracks
Cleaning and repairing castings
Removing hard surface material
Rough machining
--------------
POINTED COPPERCLAD DC ELECTRODES
A standard, all purpose gouging electrode. Its controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.
POINTED PLAIN DC ELECTRODES
General purpose electrodes without the copper plating to avoid any chance of copper contamination in the base material. Same high quality blend of carbon and graphite used in other electrodes.
POINTED COPPERCLAD AC ELECTRODES
Designed for use with A.C. power supplies. Rare earth material is added to the electrodes to stabilize the arc and enhance the operating characteristics. 305 mm (12 in.) long.
FLAT COPPERCLAD DC ELECTRODES
Specially designed for close tolerance metal removal and scarfing applications. Excellent for general gouging applications, removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
HALF ROUND COPPERCLAD DC ELECTRODES
Versatility of having both a round and flat electrode for the various gouging applications. Excellent for removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
Type: Manual Gouging
Application: Copper clad - pointed, flat, and half-round DC and AC
Carbon Range: 1/4 - 5/8 in. dia. x 12 in. length
Highlights:
--------------
Designed specifically for the air carbon-arc process
Contain a precise formulated blend of carbon and graphite
Produces the most efficient metal removal performance in today’s market
Superior metal removal rates, cool operation, and uniform diameters
Ideal for a broad range of applications
Creating u-grooves for weld joint
Removing old welds
Gouging out cracks
Cleaning and repairing castings
Removing hard surface material
Rough machining
