Victor

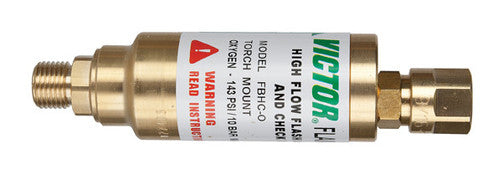

FBHC Flashback Arrestor
FBHC Flashback Arrestor
Description:---------------High Flow flashback arrestors and reverse flow check valves provide additional protection against flashbacks. Victor recommends the use of these devices whenever possible. Victor add-on flashback arrestors contain both a reverse flow check valve and a flashback arrestor. Due to the high flow requirements of Victor Heavy Industry torches, it is important to use flashback arrestors that have sufficient flow capacity. It is important to understand the difference between reverse flow check valves and flashback arrestors. Reverse Flow Check Valves: Helps prevent the reverse flow of gases from traveling past the check valve. Flashback Arrestors: Prevents a flame from traveling past the flashback arrestor in the event of a flashback.Application :SafetyGas Service :Oxy/FuelHighlights:-------------Prevents a flame from traveling past the flashback arrestor in the event of a flashback.Industries:--------------Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication
Read full overview
Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
---------------
High Flow flashback arrestors and reverse flow check valves provide additional protection against flashbacks. Victor recommends the use of these devices whenever possible. Victor add-on flashback arrestors contain both a reverse flow check valve and a flashback arrestor. Due to the high flow requirements of Victor Heavy Industry torches, it is important to use flashback arrestors that have sufficient flow capacity. It is important to understand the difference between reverse flow check valves and flashback arrestors. Reverse Flow Check Valves: Helps prevent the reverse flow of gases from traveling past the check valve. Flashback Arrestors: Prevents a flame from traveling past the flashback arrestor in the event of a flashback.
Application :
Safety
Gas Service :
Oxy/Fuel
Highlights:
-------------
Prevents a flame from traveling past the flashback arrestor in the event of a flashback.
Industries:
--------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
Specifications
General Gas Specifications
| Model | Hose Connection | Gas Service |
|---|---|---|
| FBHC-0 | “B” 9/16"-18 RH (CGA 022) | Oxygen |
| FBHC-OC | “C” 7/8" - 14 RH (CGA 024) | Oxygen |
| FBHC-OR | “B” 9/16" - 18 RH (CGA 022) | Oxygen |
| FBHC-ORC | “C” 7/8" - 14 RH (CGA 024) | Oxygen |
Ordering
| Description | Product number |
| 0657-0076 | |
| 0657-0077 | |
| 0657-0078 | |
| 0657-0079 |
