Victor

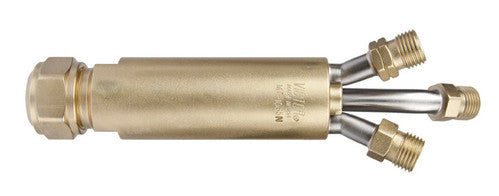

MT1065 Machine Torch
MT1065 Machine Torch
Configuration
Single Size
Description:3 hose/inlet connection design for use with all fuel gases and Series 1 cutting tips. Great for multi-torch beveling applications.Max Cut Thickness: 178 mm (7 in.)Safety Feature: Integral Check ValvesMixer Type: Equal PressureHighlights:They are available three hose version and in 8" (203.2 mm) length. The Check Valve prevents the reverse flow of gases Disk assembly seals tight against seat in event of reverse flow Spring compresses under normal flow, moving disk assembly forward and allowing gas flow Accessory Reverse Flow Check Valves supplied with all machine torches or added for added operator safety Straight Through Design minimizes turbulence, improves cutting performance High Performance Mixer Design provide optimum performance Rugged Brass torch head and body for maximum strength Pre-Drilled 1.38" (35.1 mm) Diamater Barrels for three position mounting flexibilityIndustries:Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication
Read full overview
Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
3 hose/inlet connection design for use with all fuel gases and Series 1 cutting tips. Great for multi-torch beveling applications.
Max Cut Thickness: 178 mm (7 in.)
Safety Feature: Integral Check Valves
Mixer Type: Equal Pressure
Highlights:
They are available three hose version and in 8" (203.2 mm) length.
The Check Valve prevents the reverse flow of gases
Disk assembly seals tight against seat in event of reverse flow
Spring compresses under normal flow, moving disk assembly forward and allowing gas flow
Accessory Reverse Flow Check Valves supplied with all machine torches or added for added operator safety
Straight Through Design minimizes turbulence, improves cutting performance
High Performance Mixer Design provide optimum performance
Rugged Brass torch head and body for maximum strength
Pre-Drilled 1.38" (35.1 mm) Diamater Barrels for three position mounting flexibility
Industries:
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
Specifications
General Gas Specifications
| Model | Gas Service |
| MT 1065A | Acetylene |
Ordering
| Description | Product number |
| MT 1065N Machine Cutting Torch (3 Hose), 7 inch Cut Capacity, 8.0 inch Overall Length, All Gases | 0399-1065 |
| MT 1065A Machine Cutting Torch (3 Hose), 7 inch Cut Capacity, 8.0 inch Overall Length, Acetylene | 0399-1121 |
