Victor
VCM 200/201 Cutting Machines

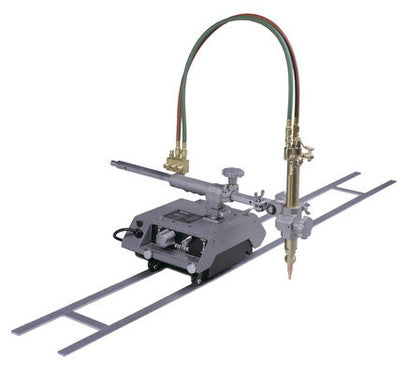

The Victor VCM 200/201 is a portable pug cutting machine for track-guided straight-line plate cutting. The VCM 200 can also perform circle cutting off track when fitted with the separately ordered radius rod assembly.
Read full overview
Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
VCM 200 and VCM 201 models
Choose the standard, high-speed or high-temperature package for the required travel speed and operating environment. Use the verified Victor part number when requesting a quotation.
| Model | Speed range | Package configuration | Part number |
|---|---|---|---|
| VCM 200 | 25.4–1524 mm/min | Standard package with MT 210A torch and torch rack | 0200-0220 |
| VCM 200E | 25.4–1524 mm/min | Export package with 220 V AC-to-110 V AC step-down transformer | 0200-0222 |
| VCM 200 HS | 127–3048 mm/min | High-speed package with MT 210A torch and torch rack | 0200-0224 |
| VCM 200HSE | 127–3048 mm/min | High-speed export package with 220 V AC-to-110 V AC step-down transformer | 0200-0226 |
| VCM 200 HT | 25.4–1524 mm/min | Standard VCM 200 package with heat shield | 0200-0240 |
| VCM 201 | 25.4–1524 mm/min | Machine package; MT 210A torch is not listed in the package contents | 0200-0221 |
| VCM 201 HS | 127–3048 mm/min | High-speed machine package; MT 210A torch is not listed | 0200-0225 |
| VCM 201 HT | 25.4–1524 mm/min | Machine package with heat shield; MT 210A torch is not listed | 0200-0241 |
The export packages are manufacturer-listed for 220 V input through a step-down transformer. Confirm the exact 230 V, 50 Hz supply arrangement, plug and CE documentation required for the UAE installation before ordering.
For setup and selection guidance, read how to choose a pug cutting machine.
Track cutting machine features
The VCM is designed for straight-line cutting on track. Victor lists 1.8 m, 2.7 m and 3.7 m track sections as separately ordered accessories; a radius rod for circle cutting is also separate. The torch holder accepts a 35.1 mm barrel, while VCM 200 packages list the MT 210A machine torch.
Review the official Victor/ESAB VCM 200/201 product information for manufacturer specifications.
Cutting speed and capacity
Cutting speed
| Cutting Speed |
|---|
| 25.4 - 1524 mm/min |
Ordering
| Description | Product number |
| 0200-0220 | |
| 0200-0224 | |
| 0200-0240 | |
| 0200-0241 | |
| 0200-0221 | |
| 0200-0225 |
Delivery & returns
Contact our team with your delivery destination, quantity and required date to confirm the delivery arrangements for this product.
Related products
Price on request
Contact us for pricing and availability.
Request a quote
