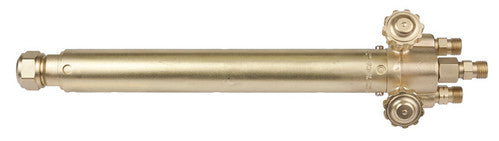

MT310 Machine Torch

Description:
--------------
Mechanized cutting torch design for use up to 12" (304.8 mm) cutting applications with Series 1 cutting tips.

Max Cut Thickness: 305 mm (12 in.)
Safety Feature: Integral Check Valves
Mixer Type: Equal Pressure & Injector

Highlights:
------------
They are available in two and three hose versions. Two hose torches are available in 4.5" (114.3 mm), 10" (254.0 mm) and 18" (457.2 mm) models, and three hose torches are available in 10" (254.0 mm) and 18" (457.22 mm) models.
The Check Valve prevents the reverse flow of gases
Disk assembly seals tight against seat in event of reverse flow
Spring compresses under normal flow, moving disk assembly forward and allowing gas flow
Accessory Reverse Flow Check Valves supplied with all machine torches or added for added operator safety
Straight Through Design minimizes turbulence, improves cutting performance
High Performance Mixer Design provide optimum performance
Rugged Brass torch head and body for maximum strength
Pre-Drilled 1.38" (35.1 mm) Diameter Barrels for three position mounting flexibility

Industries:
--------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
