Victor

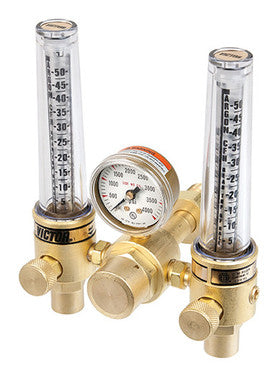

DFM 150 Series Flow Meter
DFM 150 Series Flow Meter
Description:--------------The DFM150 series offers a range of products for the delivery of shielding gas in the arc welding process or any application where gas flow rates, versus delivery pressure, are the primary consideration. These products are available for pure or mixed gases.Max Flow Capacity :up to 50 scfh (Ar/Co2) / 150 scfh HePressure Compensation :25 psig (Ar, He, Mixes), 80 psig CO2Gas Service :Ar / CO2 / He / MixesHighlights:--------------Designed to monitor two separate processes or gas flowsIdeal for applications where shielding gas and back purge requirements are neededDesigned to offer convenience for the maintenance and fabrication industriesBrass bodyTeflon seat mechanismSintered inlet filter – bronzeMusic wire – springPiston – brassCover tube – lexanIndustries:-------------Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication
Read full overview
Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
--------------
The DFM150 series offers a range of products for the delivery of shielding gas in the arc welding process or any application where gas flow rates, versus delivery pressure, are the primary consideration. These products are available for pure or mixed gases.
Max Flow Capacity :
up to 50 scfh (Ar/Co2) / 150 scfh He
Pressure Compensation :
25 psig (Ar, He, Mixes), 80 psig CO2
Gas Service :
Ar / CO2 / He / Mixes
Highlights:
--------------
Designed to monitor two separate processes or gas flows
Ideal for applications where shielding gas and back purge requirements are needed
Designed to offer convenience for the maintenance and fabrication industries
Brass body
Teflon seat mechanism
Sintered inlet filter – bronze
Music wire – spring
Piston – brass
Cover tube – lexan
Industries:
-------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
Specifications
Gas Regulators
| Cylinder Gas | Model | Maximum Inlet Pressure | CGA Inlet | CGA Outlet | Capacity |
|---|---|---|---|---|---|
| - | DFM 150-580 | 3000 psig | 580 | 5/8-18" | |
| - | DFM150-580 | 3000 psig | 580 | 5/8"-18 RH F | |
| Argon | DFM150-580 | - | - | 5-50 cfh | |
| Argon | DFM 150-580 | - | - | 5-50 cfh | |
| Helium | DFM150-580 | - | - | 20-150 cfh | |
| Helium | DFM 150-580 | - | - | 20-150 cfh |
Ordering
| Description | Product number |
| 0781-1153 |
