Victor

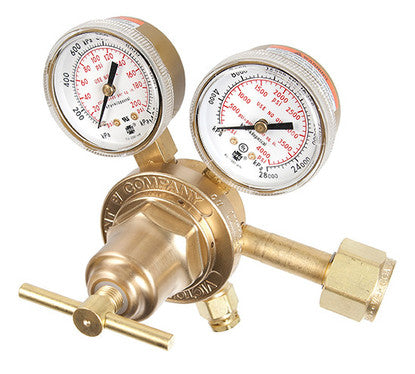

SR 250 Series Cylinder Regulator
SR 250 Series Cylinder Regulator
Description:---------------The SR250 regulators are designed for standard duty applications & for medium to large cylinders.Pressure Range :Up to 125 psi DeliverySafety Feature :External Relief Valve, Inlet FilterWarranty :10 YrsHighlights:-------------Medium duty gas control. Tried and true brass design delivers excellent gas control characteristics that meets the demands of precise cutting, welding and heating applications.Industries:-------------Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication
Read full overview
Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
---------------
The SR250 regulators are designed for standard duty applications & for medium to large cylinders.
Pressure Range :
Up to 125 psi Delivery
Safety Feature :
External Relief Valve, Inlet Filter
Warranty :
10 Yrs
Highlights:
-------------
Medium duty gas control. Tried and true brass design delivers excellent gas control characteristics that meets the demands of precise cutting, welding and heating applications.
Industries:
-------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
Specifications
Gas Gauges
| Cylinder Gas | Part Number | Model | Diameter | Case Material | Diaphragm |
|---|---|---|---|---|---|
| Oxygen | 0781-0043 | SR 250D-540 | 44.5 mm | - | Fabric Reinforced Neoprene |
| Oxygen | 0781-0027 | SR 250C-540 | 50.8 mm | Brass | - |
| Oxygen | 0781-0027 | SR 250C-540 | 44.5 mm | - | Fabric Reinforced Neoprene |
| Oxygen | 0781-0043 | SR 250D-540 | 50.8 mm | Brass | - |
| Acetylene | 0781-0085 | SR 260A-300 | 50.8 mm | Brass | - |
| Acetylene | 0781-0085 | SR 260A-300 | 44.5 mm | - | Fabric Reinforced Neoprene |
| Acetylene | 0781-0087 | SR 260A-510 | 50.8 mm | Brass | - |
| Acetylene | 0781-0087 | SR 260A-510 | 44.5 mm | - | Fabric Reinforced Neoprene |
| L.P. Gas | 0781-0095 | SR 261B-510 | 44.5 mm | - | Fabric Reinforced Neoprene |
| L.P. Gas | 0781-0098 | SR 261C-510 | 44.5 mm | - | Fabric Reinforced Neoprene |
| L.P. Gas | 0781-0098 | SR 261C-510 | 50.8 mm | Brass | - |
| L.P. Gas | 0781-0095 | SR 261B-510 | 50.8 mm | Brass | - |
Gas Regulators
| Cylinder Gas | Model | Delivery Range | Maximum Delivery Pressure | Maximum Inlet Pressure | CGA Inlet | CGA Outlet |
|---|---|---|---|---|---|---|
| - | SR261B-510 | 2-40 psig | 350 psig | 510 | 9/16" – 18 M LH | |
| - | SR261C-510 | 4-80 psig | 350 psig | 510 | 9/16" – 18 M LH | |
| - | SR260A-510 | 2-15 psig | 3000 psig | 510 | 9/16" – 18 M LH | |
| - | SR260A-300 | 2-15 psig | 3000 psig | 300 | 9/16" – 18 M LH | |
| Oxygen | SR 250D-540 | 5-125 psig | 3000 psig | - | 9/16-18" | |
| Oxygen | SR 250C-540 | 4-80 psig | 3000 psig | - | 9/16-18" | |
| Acetylene | SR 260A-300 | 2-15 psig | 3000 psig | - | 9/16-18" | |
| Acetylene | SR 260A-510 | 2-15 psig | 3000 psig | - | 9/16-18" | |
| L.P. Gas | SR 261C-510 | 4-80 psig | 3000 psig | - | 9/16-18" | |
| L.P. Gas | SR 261B-510 | 2-40 psig | 3000 psig | - | 9/16-18" |
Ordering
| Description | Product number |
| 0781-0027 | |
| 0781-0043 | |
| 0781-0085 | |
| 0781-0087 | |
| 0781-0095 | |
| 0781-0098 |
