Exact Tools
Exact PipeCut 170E System
Exact PipeCut 170E System
Powerful, lightweight and handy PipeCut 170E
Read full overview
Specifications
| Manufacturer | Exact Tools |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview

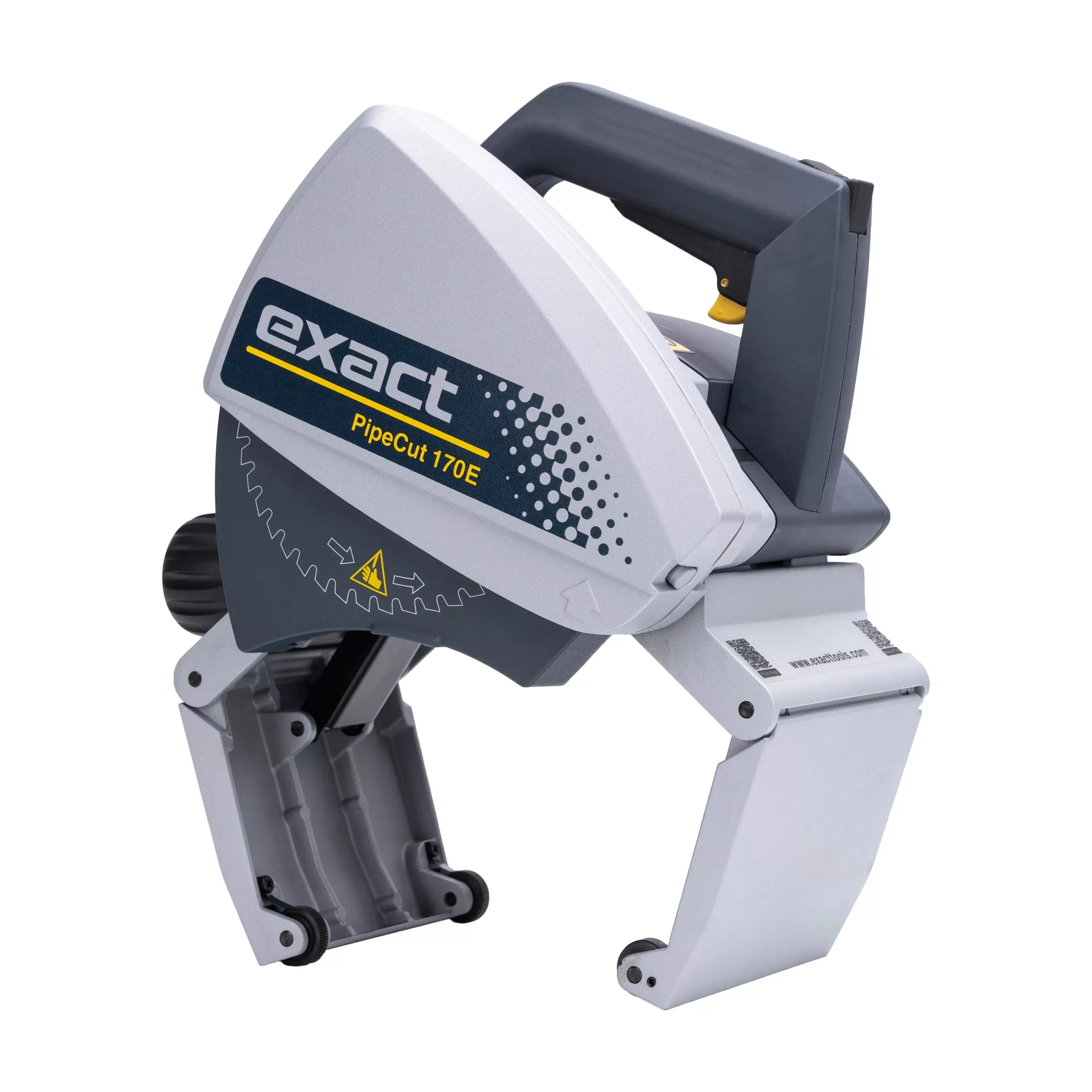

Powerful, lightweight and handy PipeCut 170E
can be used for cutting both metal and plastic pipes. Because of its adjustable speed and steady torque feature it is ideal for cutting stainless steel and cast iron pipes. It offers hi-end performance for pipe fitting professionals

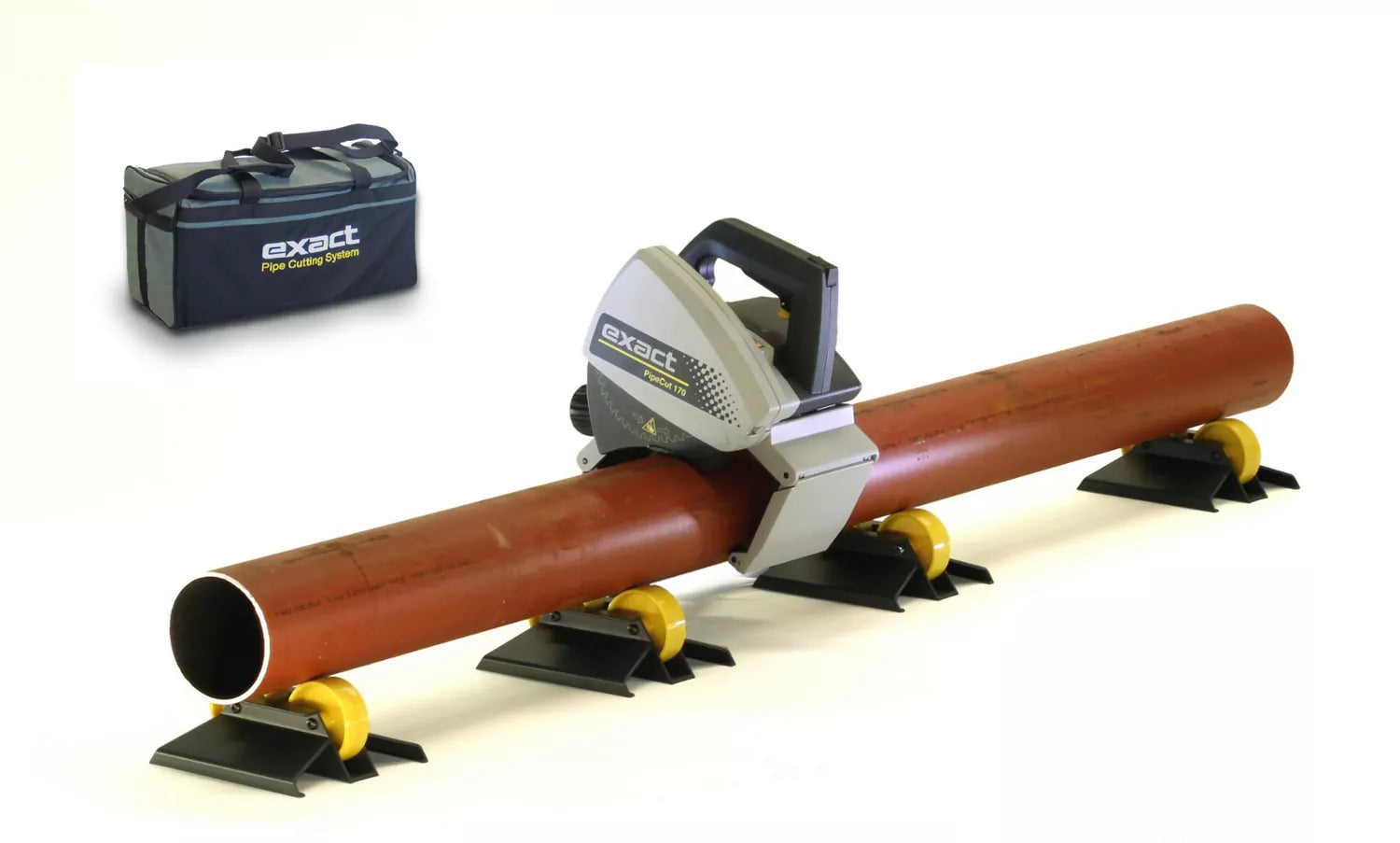

Standard equipment:

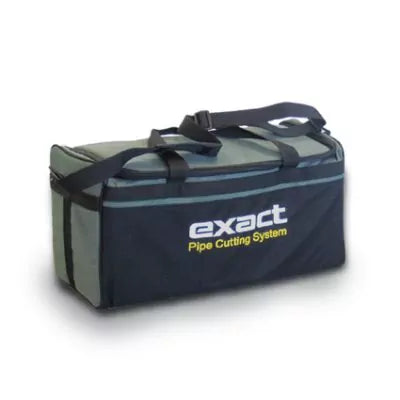

- PipeCut Bag 2
- Exact PipeCut 170E pipe saw

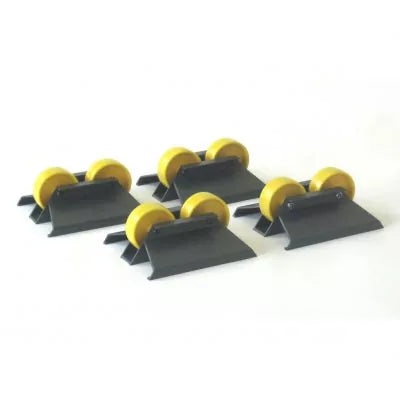

- Pipe Support 170, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 140 blade fitted to the machine
TECHNICAL SPICIFICATION
| Pipe material |
Aluminum, Cast iron, Copper, Multi-layered materials, Plastic, Stainless/Inox steel, Steel |
|---|---|
| Pipe cutting capacity (OD) |
0.6” to 6.7 (15mm – 170mm) |
| Max. wall thickness |
0.31“ (8 mm) Steel, 0.55“ (14 mm) Plastic |
| Current |
9.2 Amps (110-120 V) |
| No-Load speed |
1600 – 3500 r/min |
| Blade diameter |
5.51” (140mm) |
| Mounting bore |
2.44” (62mm) |
| Weight |
12 lbs (5.7 kg) |
| Electronical unit |
Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection |
4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials |
