Exact Tools
Exact PipeCut P400 System
Exact PipeCut P400 System
2”- 16” (50mm – 400mm)
Read full overview
Specifications
| Manufacturer | Exact Tools |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview

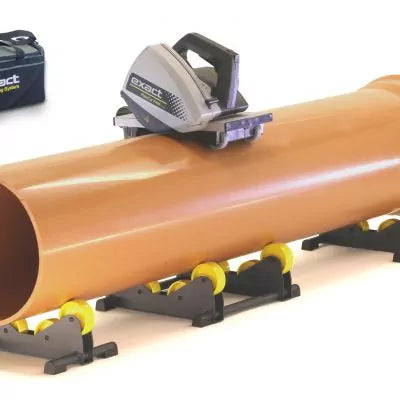

Plastic Pipe Cutting & Beveling Machine
- Cut and bevel plastic pipes in one process
- Unique method for plastic pipe installations
- You just need to cut around pipe and this machine simultaneously makes a nice 15 degrees bevel
- You can use this machine also only for cutting or only for beveling plastic pipes
Standard equipment:

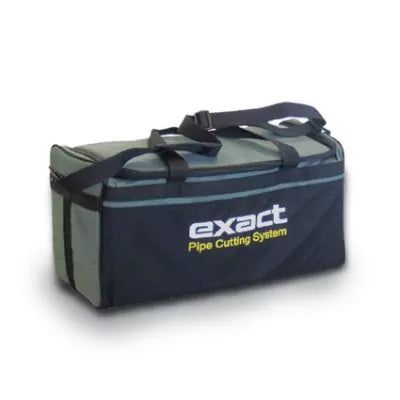

- PipeCut Bag 1

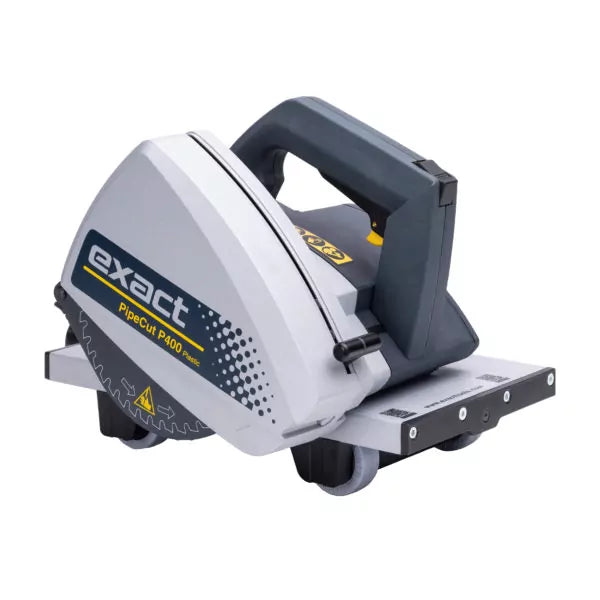

- Exact PipeCut P400 pipe saw

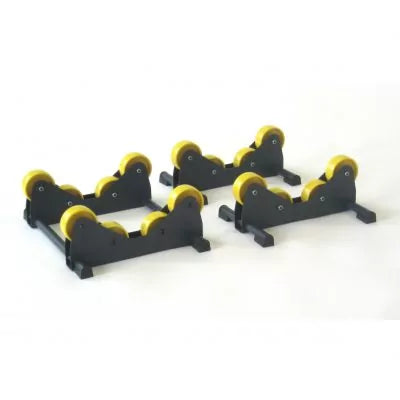

- Pipe Support 2x P400 Single + P400 Double
- Operating instructions
- Hex socket key 5 mm fitted to the machine
- TCT P150 blade fitted to the machine
- Cut Bevel blade
TECHNICAL SPICIFICATION
| Pipe cutting capacity (OD) |
2”- 16” (50mm – 400mm) |
|---|---|
| Max. wall thickness |
0.98” (25mm) Cut, 0.86” (22mm) Cut & Bevel |
| Pipe material |
Plastic |
| Current |
8.4 Amps (110-120 V) |
| No-Load speed |
4000 r/min |
| Blade diameter |
148/150mm (5.8”/5.9”) |
| Mounting bore |
2.44” (62mm) |
| Weight |
13 lbs (6.0 kg) |
