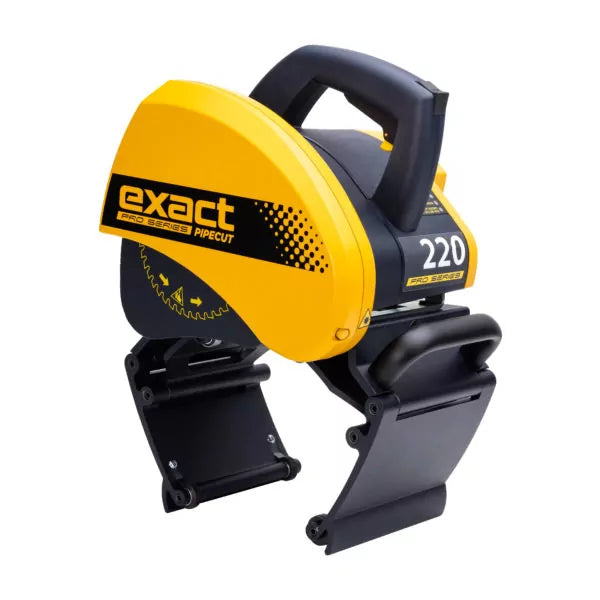

Exact PipeCut 220 Pro Series
Exact PipeCut 220 Pro Series
This machine is the best choice when you need to cut any small to medium diameter pipes made from the toughest materials.
Read full overview
Specifications
| Manufacturer | Exact Tools |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview

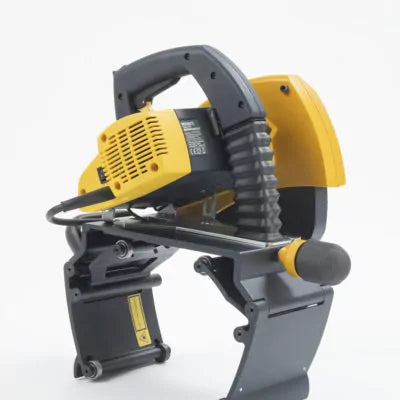

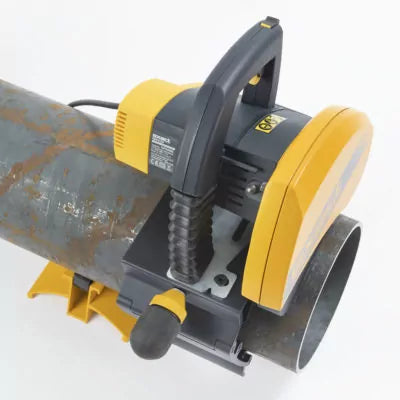

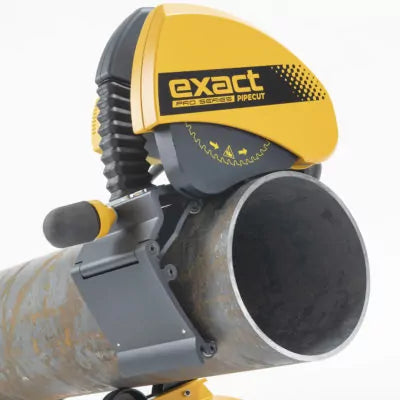

Heavy-duty pipe saw for small and medium diameter pipes
This machine is the best choice when you need to cut any small to medium diameter pipes made from the toughest materials.
Wall thickness capacity for steel pipes is 0.5″ and 1.37″ in plastic.
The cutting capacity for pipe outside diameter is 0.8″ – 8.7″.
Equipped with and providing the following benefits for you:
- User friendliness, extremely easy and convenient to use
- Efficiency, extremely fast cuts

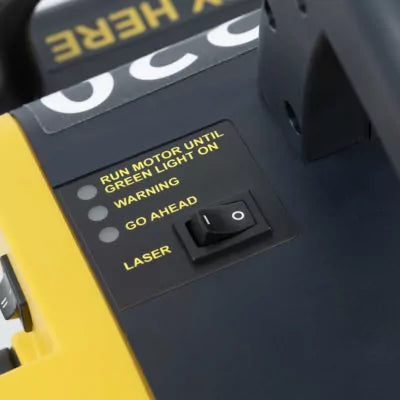

- Improved precision with a traffic light system enabling the user to cut pipes at the correct travel speeds

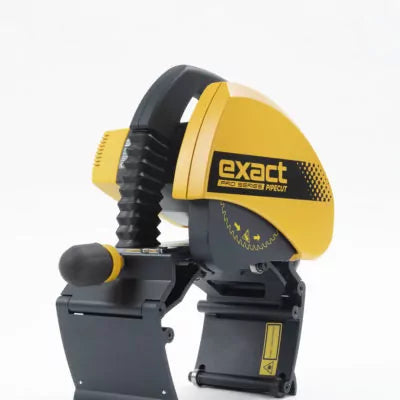

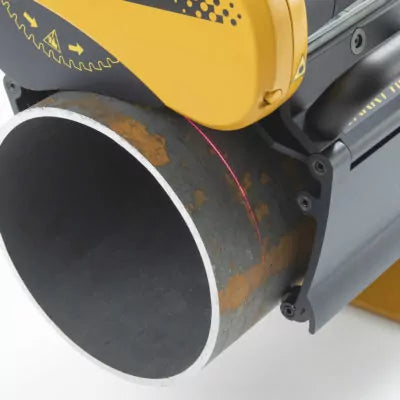

- Laser indicator for cutting point precision

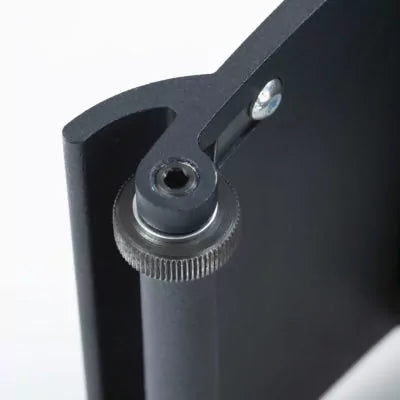

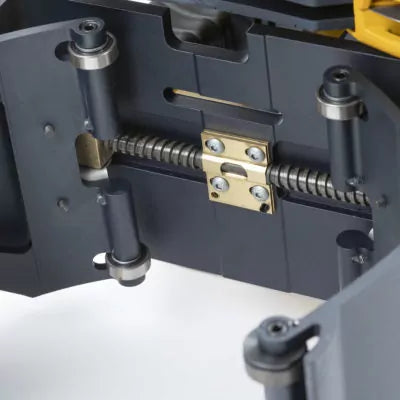

- Updated adjustment mechanism

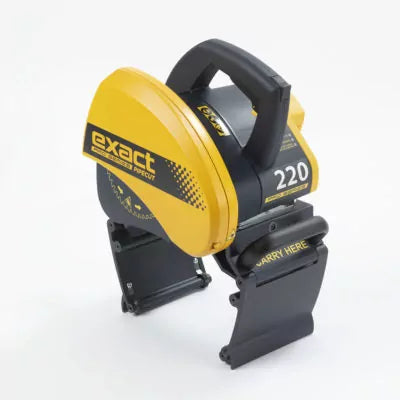

- Easy to carry, easy to move. The machine weighs only 25 lbs
Standard equipment:
- PipeCut 220 Pro Series pipe saw

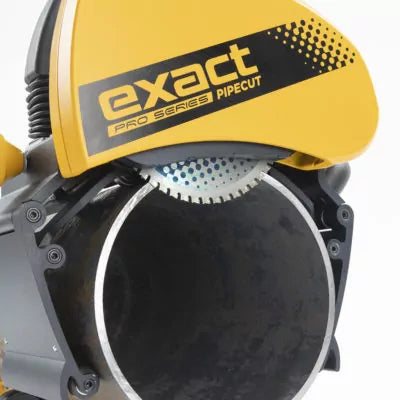

- TCT 165 blade pre-installed
- Shoulder bag

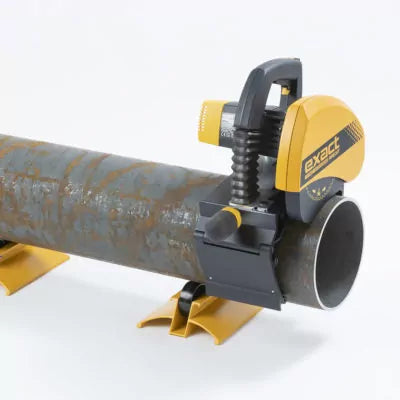

- Pipe support x 4 pcs
- Hex socket key 5 mm and 2 mm fitted to the machine
TECHNICAL SPICIFICATION
| Pipe cutting capacity (OD) |
0.8" to 8.7" (20mm – 220mm) |
|---|---|
| Max. wall thickness |
0.6" (16 mm) Steel / 230V, 1.4” (35 mm) Plastic |
| Pipe material |
Aluminum, Cast iron, Copper, Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel |
| Laser for cutting point definition |
Yes, Yes |
| Traffic lights for overheat control |
Yes, Yes |
| Current |
15 Amps (110-120 V), 1600 W (220-240 V) or 15 A (110-120 V) |
| Electronical unit |
Blade speed preselection, automatic fuse, soft start, torque control |
| No-Load speed |
I (low) = 1900/min, II (high) = 2885 /min |
| Blade diameter |
140 mm (5.6") to 180 mm (7.2"), 140 mm (5.6"), 165 mm (6.5"), 180 mm (7.2") |
| Mounting bore |
2.44” (62mm) |
| Weight |
25 lbs (11.5 kg) |
| Loading capacity of supports |
692 lbs (314 kg) 4 supports |
