Exact PipeCut 220E System
Exact PipeCut 220E System
Power plus a wide cutting capacity with PipeCut 220E.
Read full overview
Specifications
| Manufacturer | Exact Tools |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Power plus a wide cutting capacity with PipeCut 220E.
It can be used for cutting both metal and plastic pipes; the machine has adjustable motor speed and contant torque. Because of its robust design it is ideal for use in both the workshop or on site for a multitude of different pipe applications.

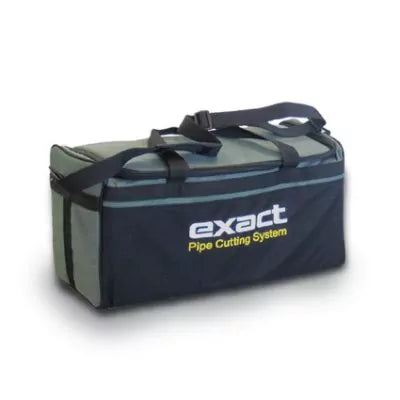

Standard equipment:- PipeCut Bag 3

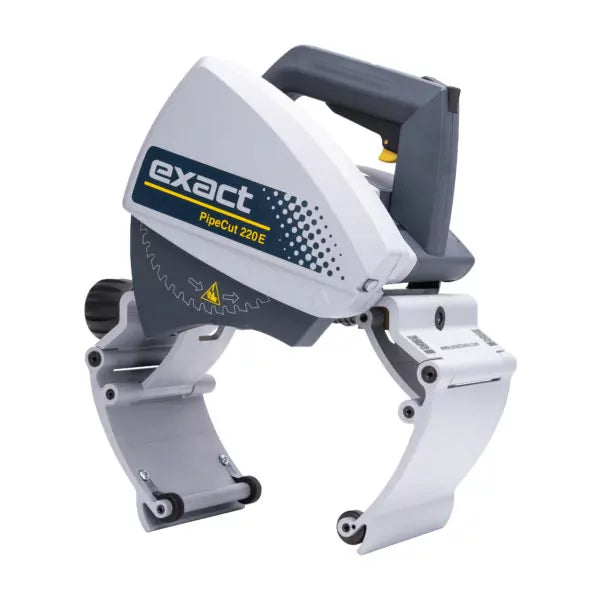

- Exact PipeCut 220E pipe saw

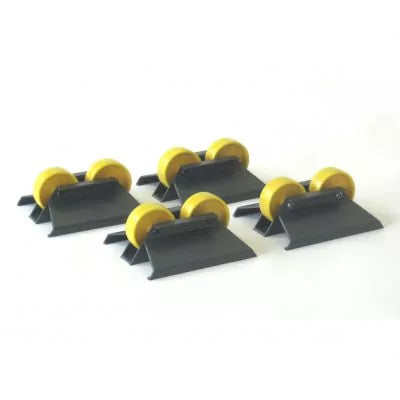

- Pipe Support 280, 4pcs
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 140 blade fitted to the machine
TECHNICAL SPICIFICATION
| Pipe material |
Aluminum, Cast iron, Copper, Multi-layered materials, Plastic, Stainless/Inox steel, Steel |
|---|---|
| Pipe cutting capacity (OD) |
0.6” to 8.6” (15mm – 220mm) |
| Max. wall thickness |
0.31“ (8 mm) Steel, 0.55“ (14 mm) Plastic |
| Current |
9.2 Amps (110-120 V) |
| No-Load speed |
1600 – 3500 r/min |
| Blade diameter |
5.51” (140mm) |
| Mounting bore |
2.44” (62mm) |
| Weight |
13 lbs (6.0 kg) |
| Electronical unit |
Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection |
4= Stainless steel and acid-resistant steel, 5= steel, 6= all other materials |
| Loading capacity of supports |
692 lbs (314 kg) 4 supports |
