Exact Tools

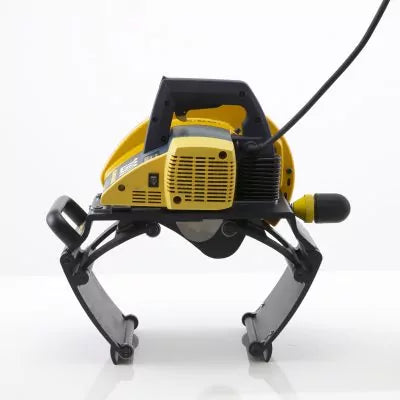

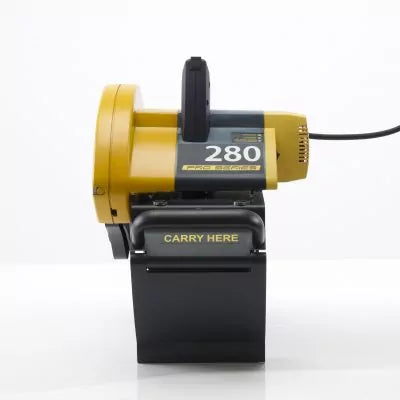

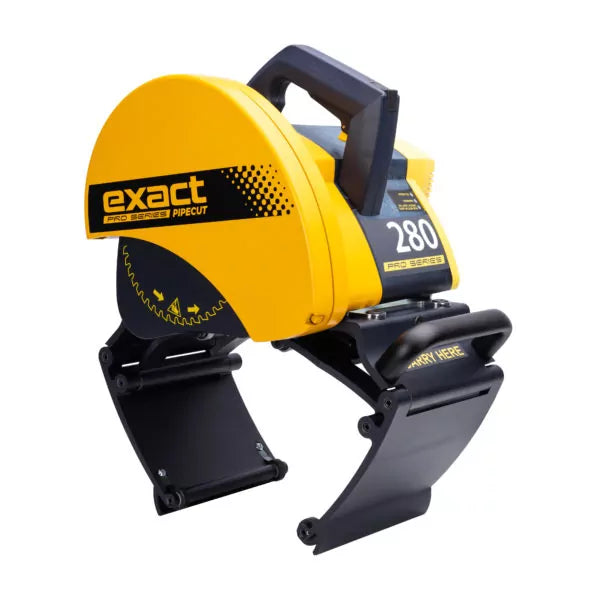

Exact PipeCut 280 Pro Series

Name: Exact PipeCut 280 Pro Series
Brand: Exact Tools

THE MOST ADVANCED PIPE CUTTING SYSTEM EVER MADE!

Quote only Price on request Pricing and commercial terms are confirmed for the selected configuration.

Low stock

Manufacturer	Exact Tools

Technical documentation

Request the documents required for your exact model and application. Our team can confirm which files are available.

Product overview

THE MOST ADVANCED PIPE CUTTING SYSTEM EVER MADE!

Much stronger 2500W 230V / 2200W 110V motor.
Electronics protecting the motor from overload and “traffic lights” guiding the operator.
Laser indicator for precise cutting.
Improved adjustment mechanism for straight cutting.
Professional quality – Made in EU.
Cuts steel pipes with wall thickness up to 20 / 12 mm.

Pipe cutting capacity (OD)	2” to 11” (50mm – 280mm)
Max. wall thickness	0.5” (12 mm) Steel / 120V, 0.8” (20mm) Steel / 230V, 2” (45mm) Plastic
Pipe material	Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel
Laser for cutting point definition	Yes, Yes
Traffic lights for overheat control	Yes, Yes
Current	15 Amps (110-120 V)
No-Load speed	I=1900 r/min, II=2885 r/min
Blade diameter	140 mm (5.51”), 165 mm (6.5"), 180 mm (7.2"), 190 mm (7.6")
Mounting bore	2.44” (62mm)
Weight	34,2 lbs (15.5 kg)
Electronical unit	Blade speed preselection, automatic fuse, soft start, torque control

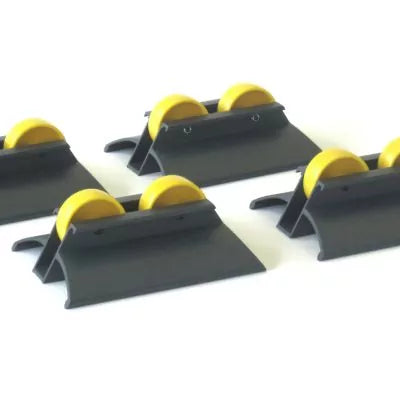

Loading capacity of supports	1025 lbs (465 kg) 3 supports
