Exact PipeCut 360 Pro Series
Exact PipeCut 360 Pro Series
Exact PipeCut 360 Pro Series is intended for heavy-duty pipe cutting. Suitable for all pipe materials. Portable and easily transportable.
Read full overview
Specifications
| Manufacturer | Exact Tools |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Heavy-Duty Pipe Cutting Saw
Exact PipeCut 360 Pro Series is intended for heavy-duty pipe cutting. Suitable for all pipe materials. Portable and easily transportable.
The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 3”- 14” and up with a maximum wall thickness of 0.8” for steel, 2” for plastics.
Exact PipeCut 360 Pro Series is the first and most popular pipe saw of the Pro Series product family. The machine is intended for professionals that appreciate easiness, fast cutting and accurate, straight cutting results. The machine creates only minimum amount of sparks and all in all is an extremely safe tool to use thanks to the user-friendly design.
THE MOST ADVANCED PIPE CUTTING SYSTEM EVER MADE!
- Much stronger 2500W 230V / 15 AMPS 110V motor
- Electronics protecting the motor from overload and “traffic lights” guiding the operator
- Laser indicator for precise cutting
- Improved adjustment mechanism for straight cutting
- Professional quality – Made in EU
- Cuts steel pipes with wall thickness up to 20 mm / 0.5″
Standard equipment:
- Exact PipeCut 360 Pro Series pipe saw

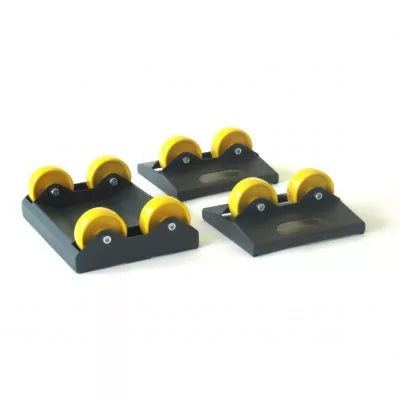

- Pipe Supports 1 x Double, 2 x Small
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 165 blade fitted to the machine
TECHNICAL SPICIFICATION
| Pipe cutting capacity (OD) |
3” to 14” (75mm – 360mm) |
|---|---|
| Max. wall thickness |
0.5" (12mm) Steel / 110V, 0.8” (20mm) Steel / 230V, 2” (45mm) Plastic |
| Pipe material |
Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Multi-layered materials, Plastic, Stainless/Inox steel, Steel |
| Laser for cutting point definition |
Yes, Yes |
| Traffic lights for overheat control |
Yes, Yes |
| No-Load speed |
I=1900 r/min, II=2885 r/min |
| Blade diameter |
140 mm (5.51”), 165 mm (6.5"), 180 mm (7.2"), 190 mm (7.6") |
| Mounting bore |
2.44” (62mm) |
| Weight |
38.6 lbs (17.5 kg) |
| Loading capacity of supports |
1025 lbs (465 kg) 3 supports |
