Exact PipeCut+Bevel 360 Pro Series
Exact PipeCut+Bevel 360 Pro Series

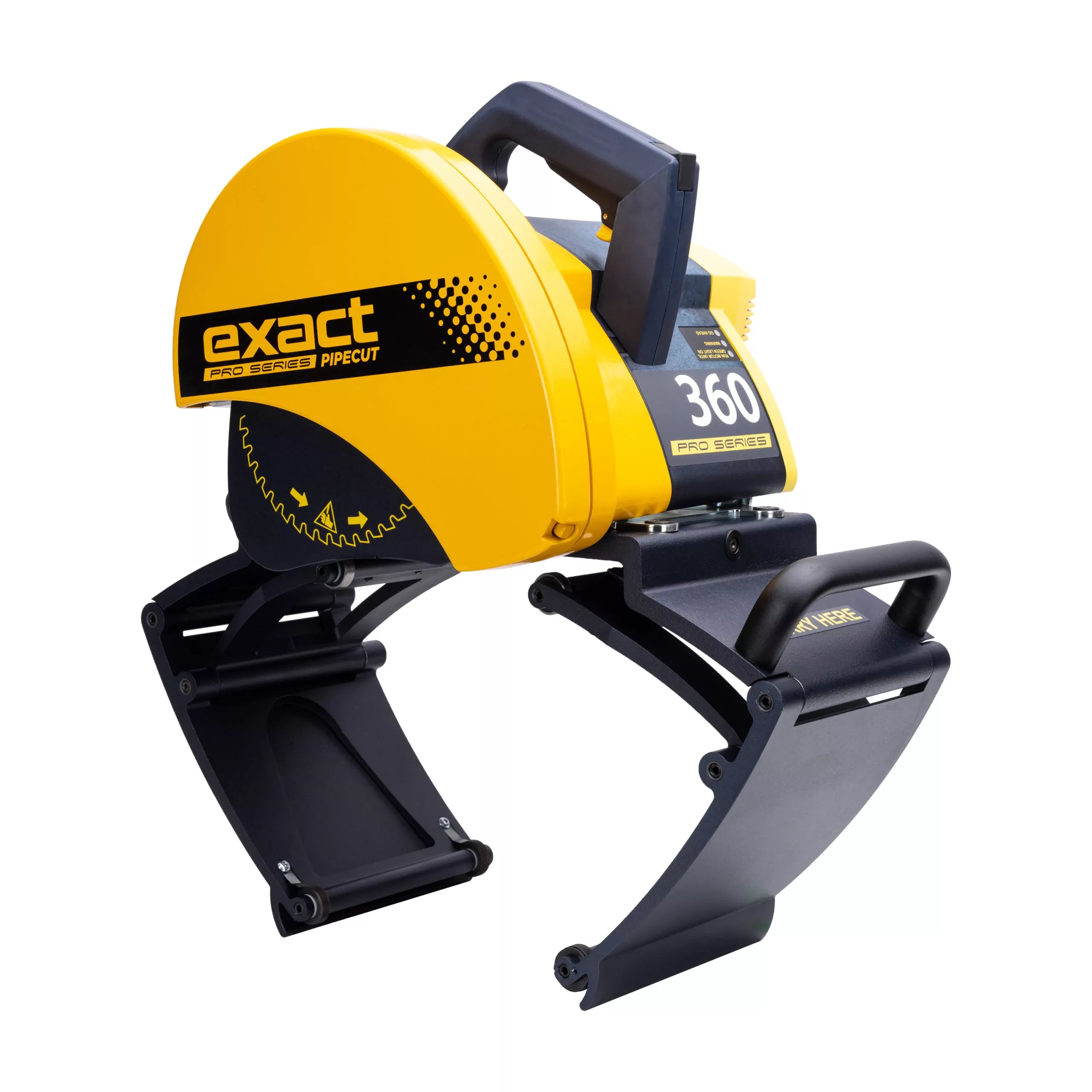

Exact PipeCut+Bevel 360 Pro Series is a groundbreaking new product for cutting and beveling water & sewer pipelines in one process.
Read full overview
Specifications
| Manufacturer | Exact Tools |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview

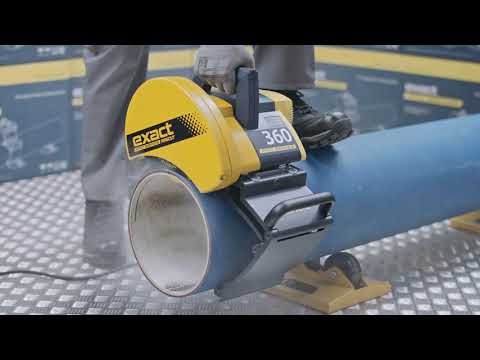

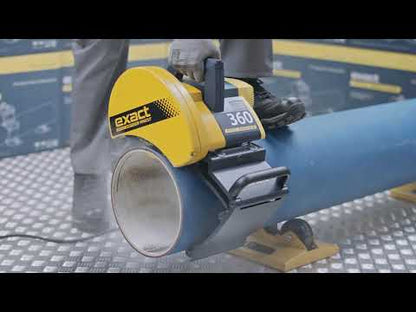

Exact PipeCut+Bevel 360 Pro Series is a groundbreaking new product for cutting and beveling water & sewer pipelines in one process.

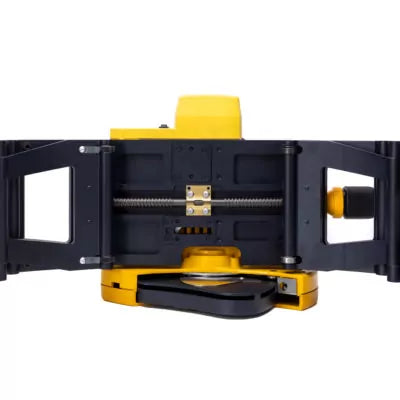

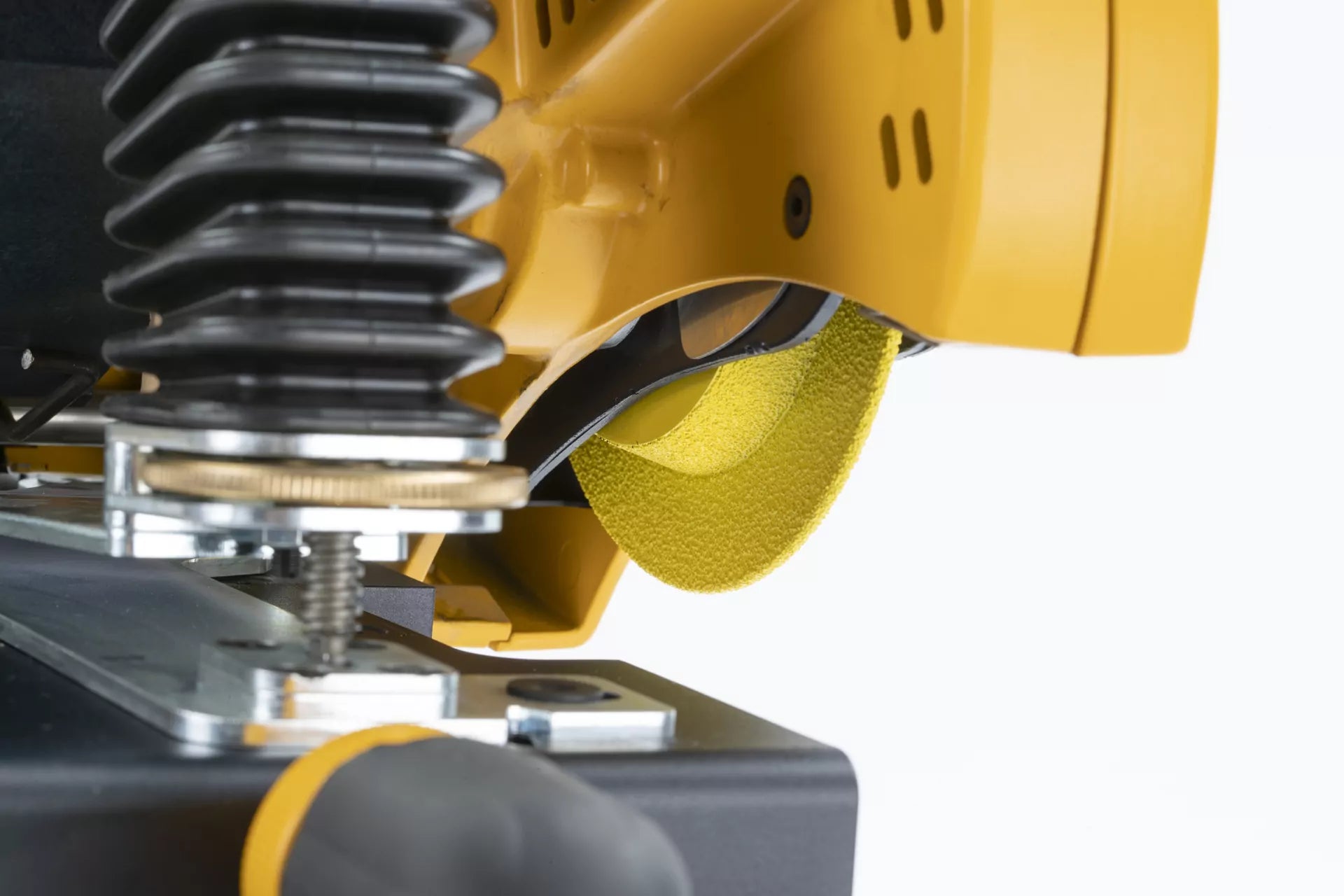

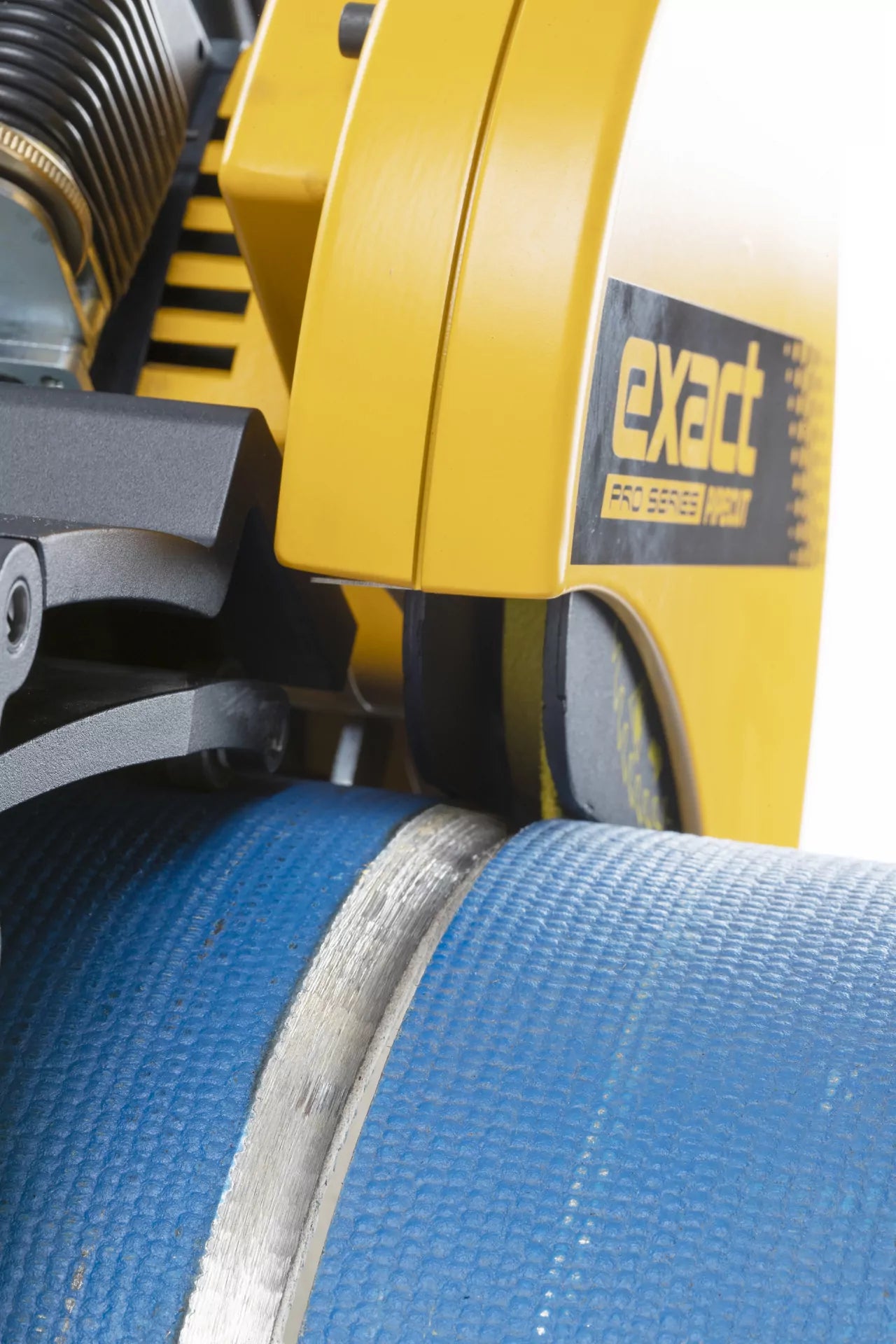

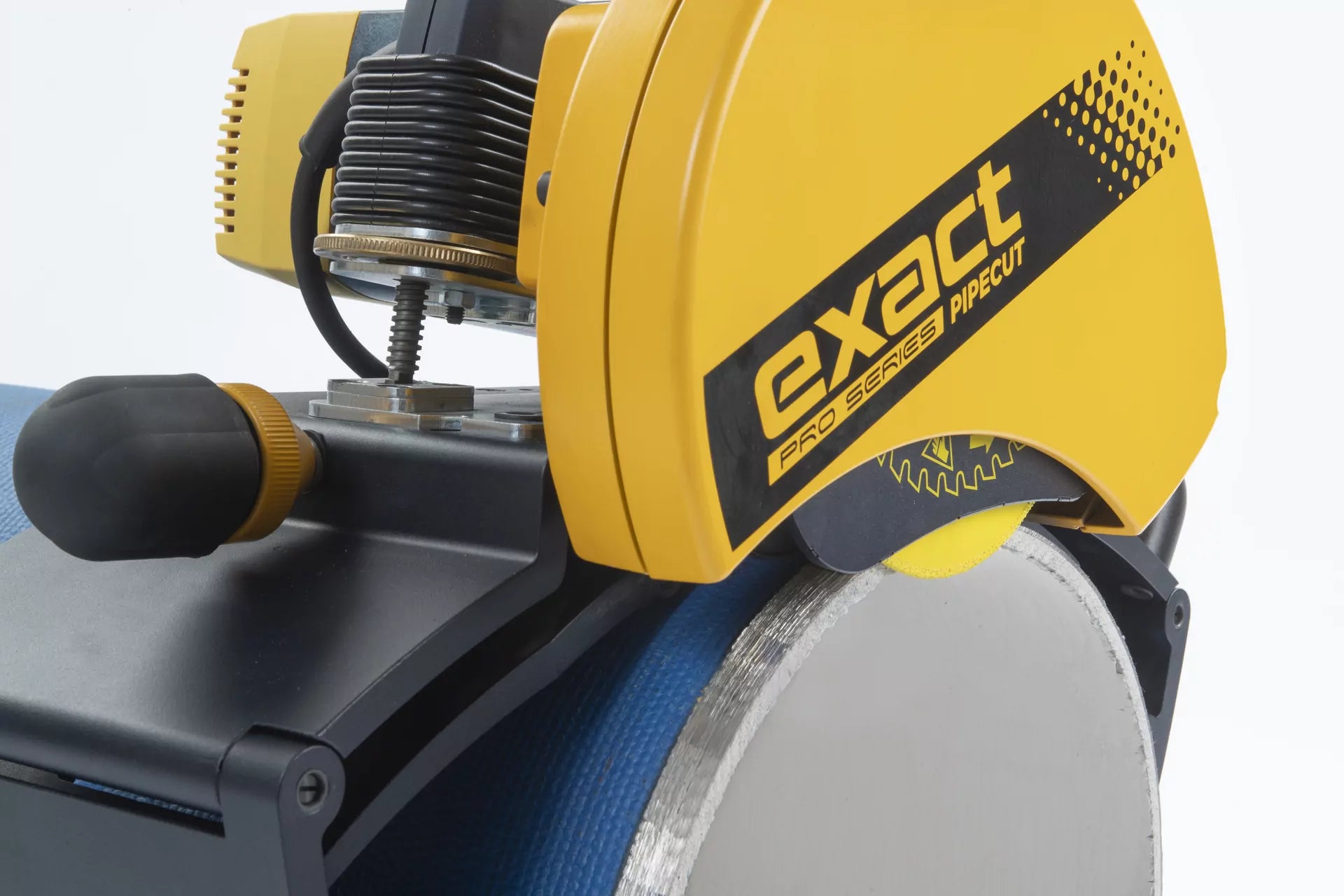

With the renewed cutting depth adjustment and the best diamond disc on the market, this machine cuts and bevels pipes in one process. You can easily choose the bevel length and depth with the machine’s adjustments. You can even adjust the bevel depth during the cutting process. The machine is extremely easy and safe to use, the patented gripping unit ensures firm attachment to the pipe and makes the use of machine convenient. The machine is portable and can be used with a blade guard (separately orderable product) featured with a vacuum port (when cutting cast iron with concrete layer and plastics) to easily vacuum all the small dust/chips and take the user-friendliness to the next level.
The price includes
- PipeCut Bag PS
- Exact PipeCut+Bevel 360 Pro Series pipe saw

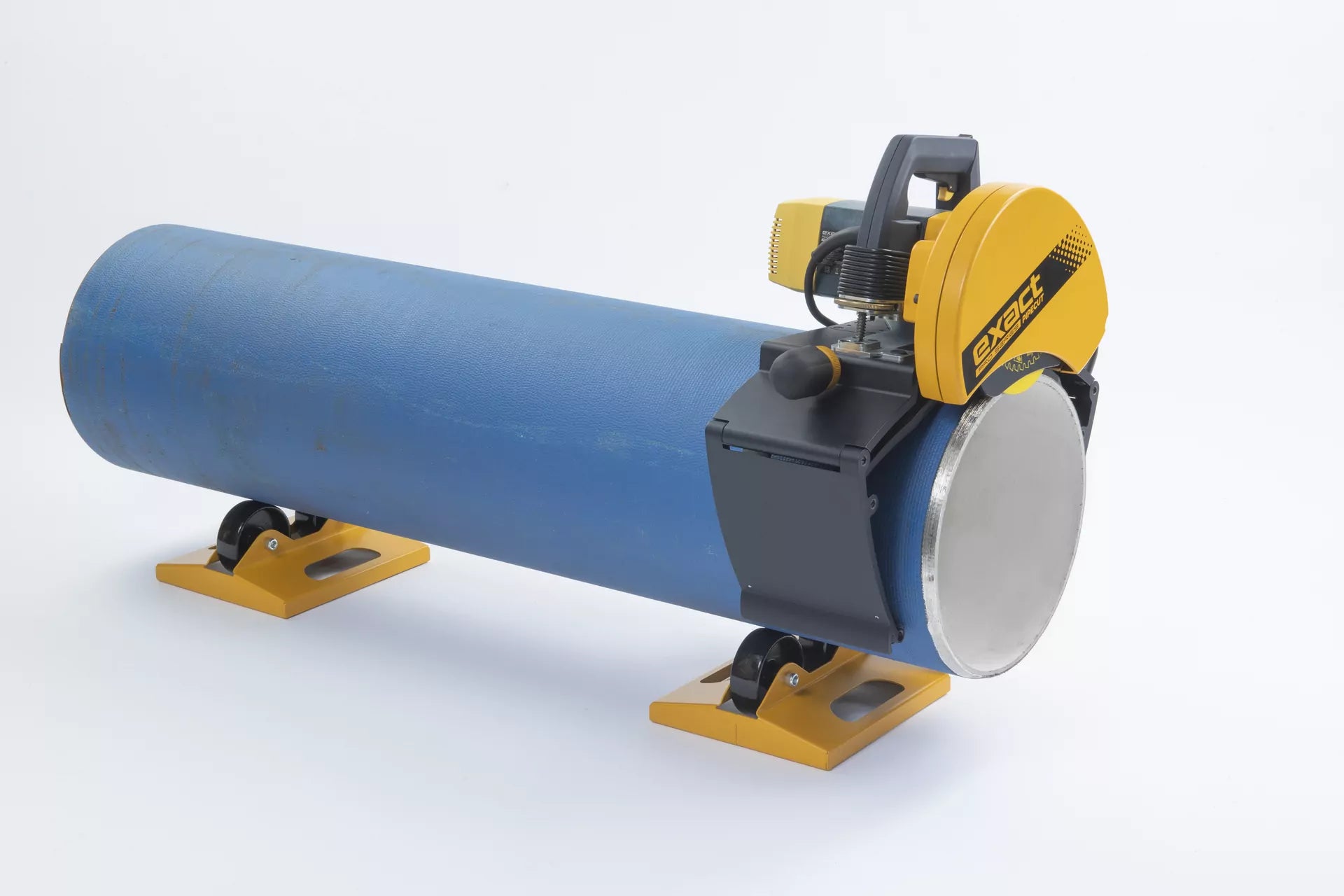

- Pipe Support Double and 2x Single and tool for changing blade in the bag.
- Operating instructions
- Hex socket key 5 mm and 2 mm fitted to the machine
- TCT 165 blade and specific blade guard for it
- Diamond Cut Bevel disc 165 mm and specific blade guard for it
TECHNICAL SPICIFICATION
| Pipe cutting capacity (OD) |
3” to 14” (75mm – 360mm) |
|---|---|
| Max. wall thickness |
0.5" (12mm) Steel / 110V, 0.8” (20mm) Steel / 230V |
| Pipe material |
Cast iron, Ductile (nodular cast iron), Plastic, Stainless/Inox steel, Steel |

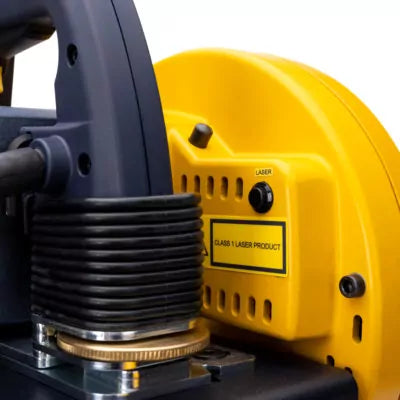

| Laser for cutting point definition |
Yes |
| Traffic lights for overheat control |
Yes |
| No-Load speed |
I=1900 r/min, II=2885 r/min |
| Mounting bore |
2.44” (62mm) |
| Electronical unit |
Blade speed preselection, automatic fuse, soft start, torque control |
| Speed preselection |
I = Stainless steel II = Cut+Bevel function and all other materials |
| Loading capacity of supports |
1025 lbs (465 kg) 3 supports |
