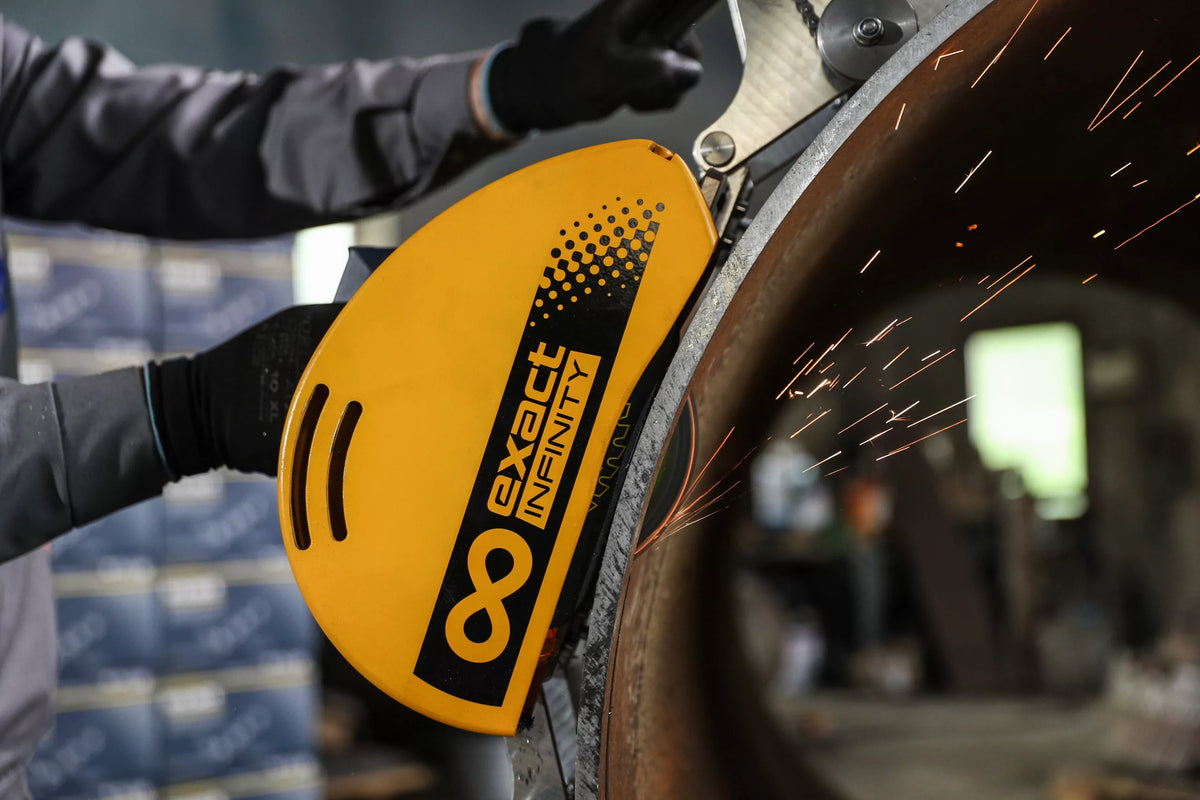

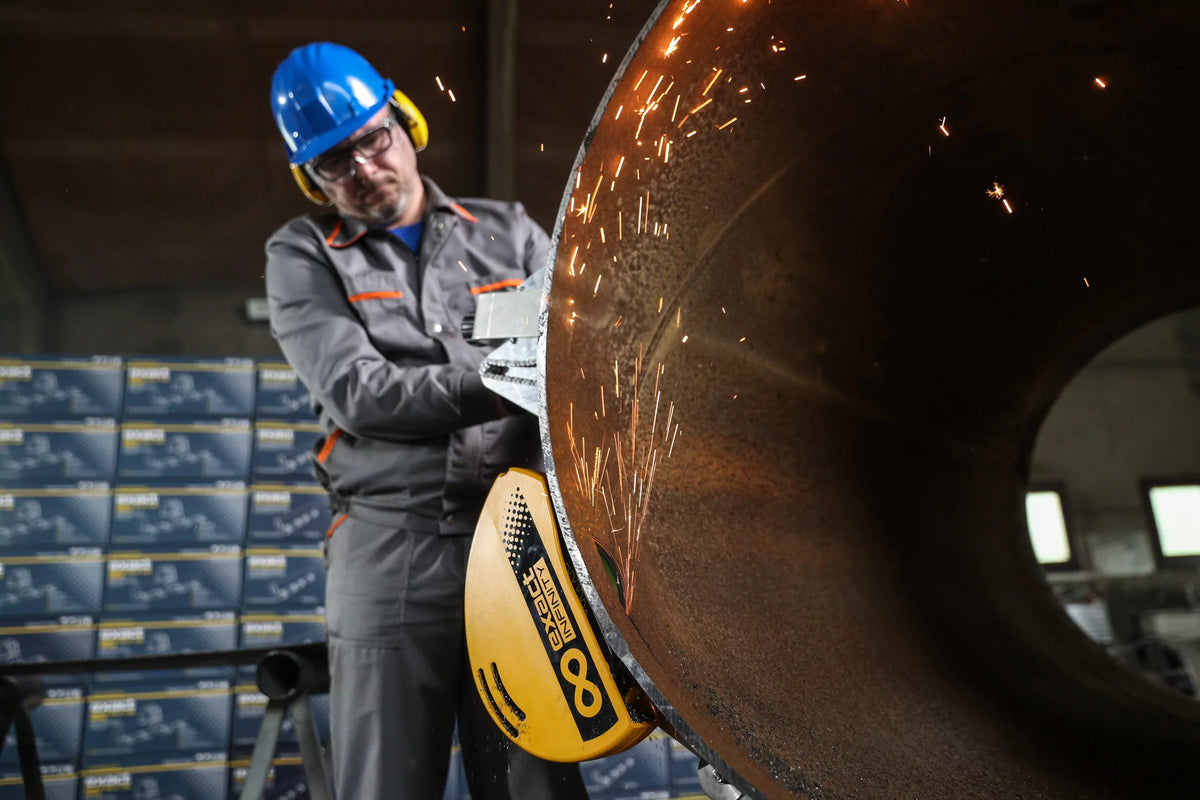

Cutting the world’s largest pipes with Infinity
As the name indicates, The Infinity can cut pipe with no limits in regards to outside diameter. You can basically cut all pipe sizes (outside diameter) from 14” and beyond.

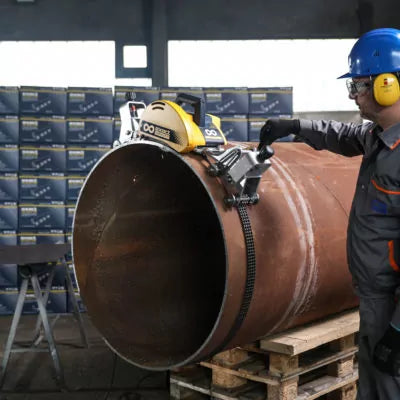

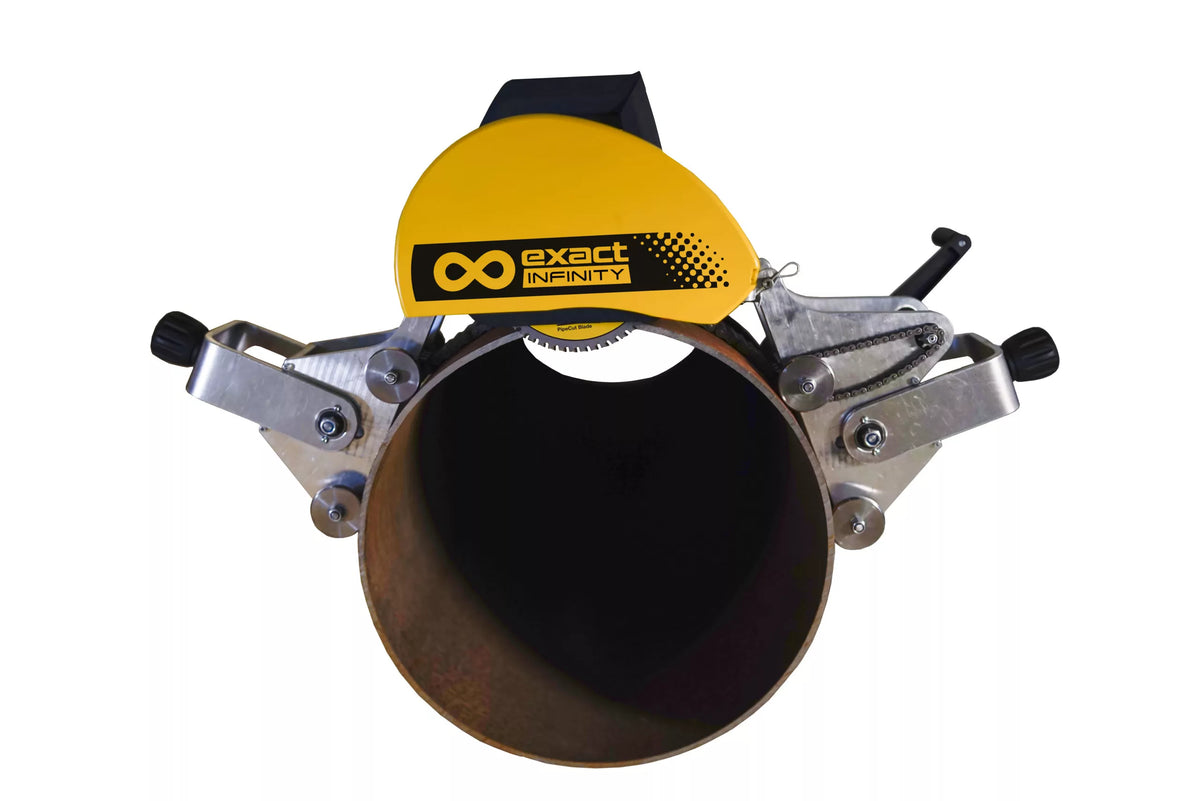

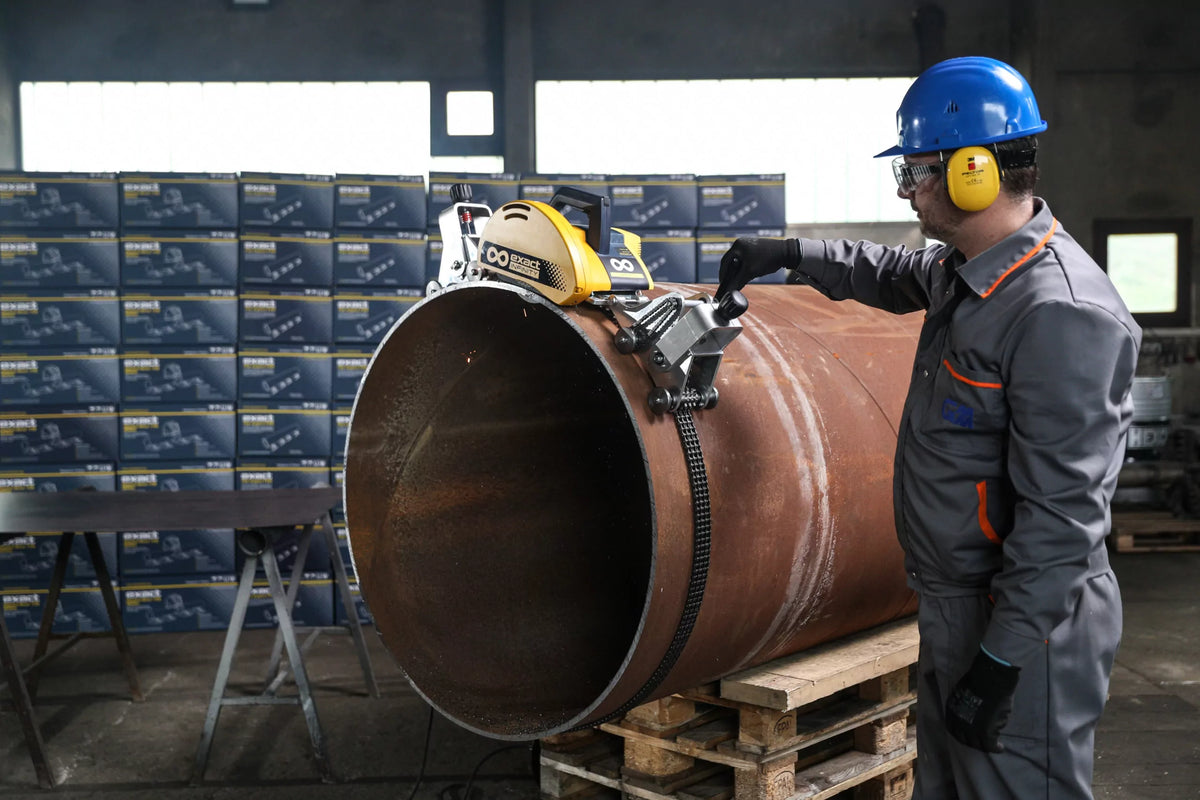

Exact Infinity is a completely new type of pipe cutting system, unlike the other exact models, it uses a chain gripping mechanism. Thanks to the flexibility of the chain segments, it allows you to extend the chain segment gripping unit as much as you like.
Infinity is available in (3) different models depending on your needs
| Infinity Standard | Infinity Plus | Infinity Cut+Bevel | |
| Can cut all pipes from OD 14″ (360 mm) upwards | ✅ | ✅ | ✅ |
| Can cut and bevel cast iron in one process | ❌ | ❌ | ✅ |
| Cutting depth adjustment | ❌ | ✅ | ✅ |
| Constant feed with power drill connection | ❌ | ✅ | ❌ |
Can cut all pipes from OD 14″ (360 mm) upwards: Steel, stainless steel, plastics, cast/ductile iron.
Can cut and bevel cast iron: Special blade guard and disc for this purpose is standard equipment in Cut+Bevel model. Plus model can be used to Cut+Bevel cast/ductile iron pipes, if you separately order the needed accessories.

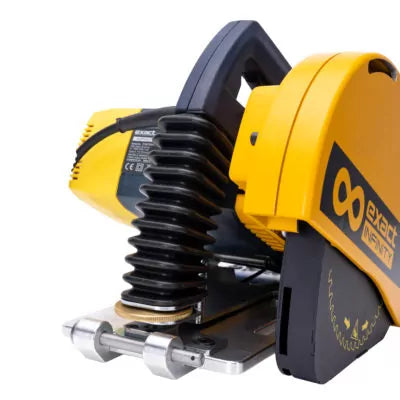

Cutting depth adjustment: A cutting depth adjustment mechanism that allows to cut pipes at desired cutting depth. This mechanism allows you to cut multi-layer pipes. This feature can be used on any pipe materials as needed. Standard equipment only in Cut+Bevel and Plus models.

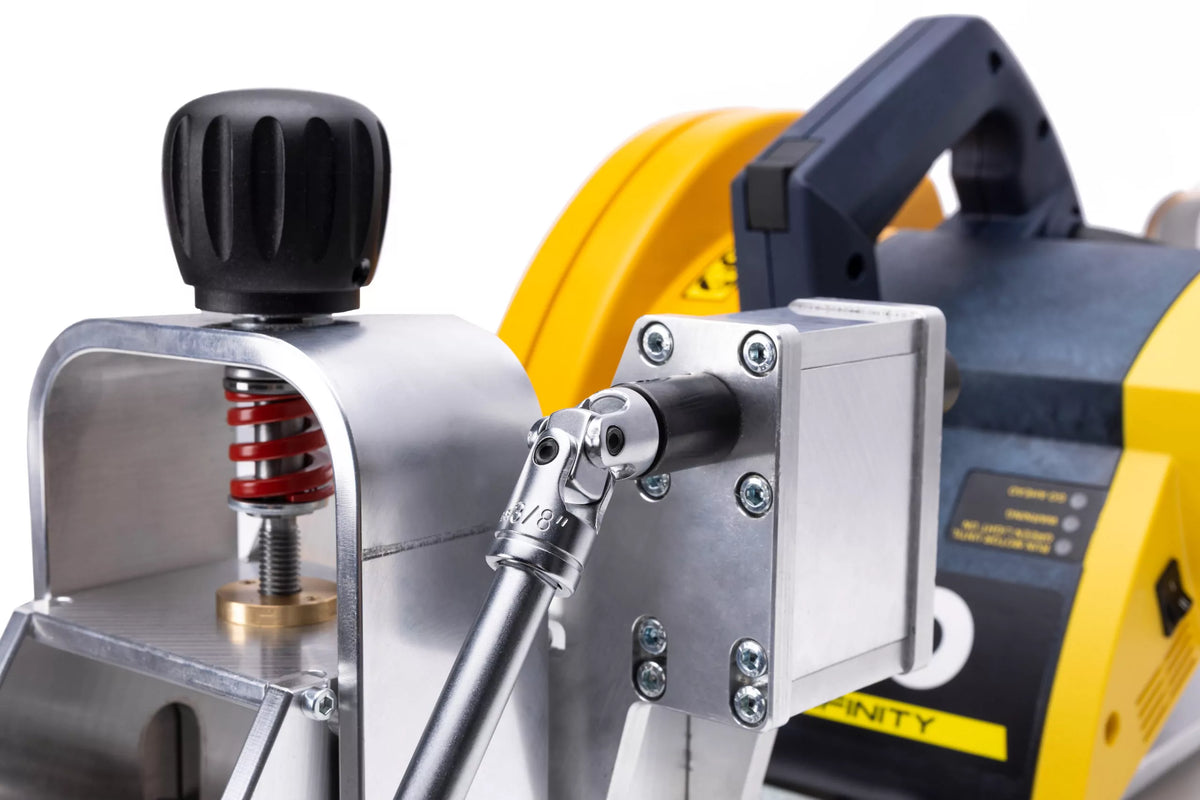

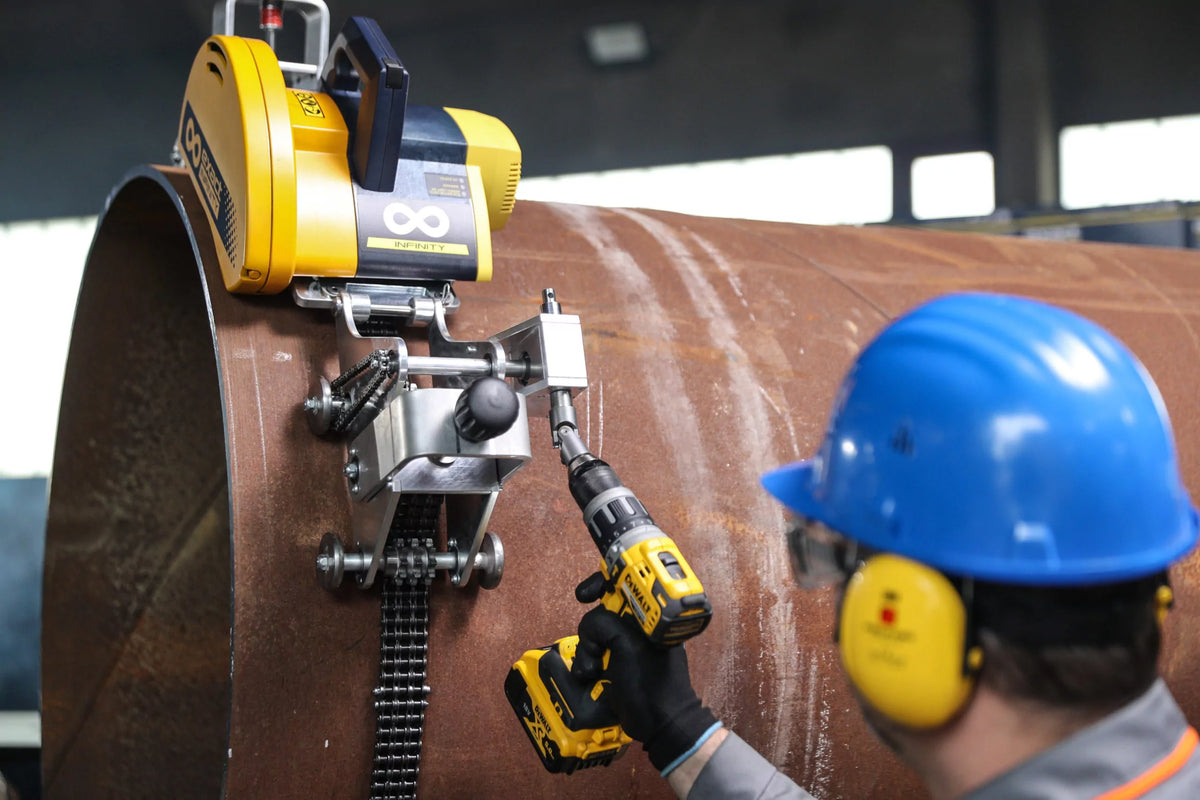

Constant feed with power drill connection: Special accessory, gearbox, that can be connected to a power drill for even easier working. Standard equipment only in Plus model. For other models separately orderable.

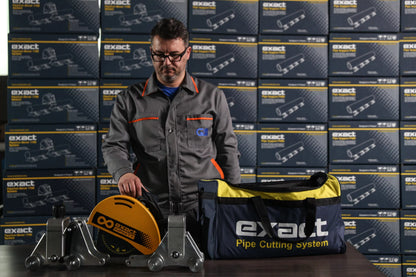

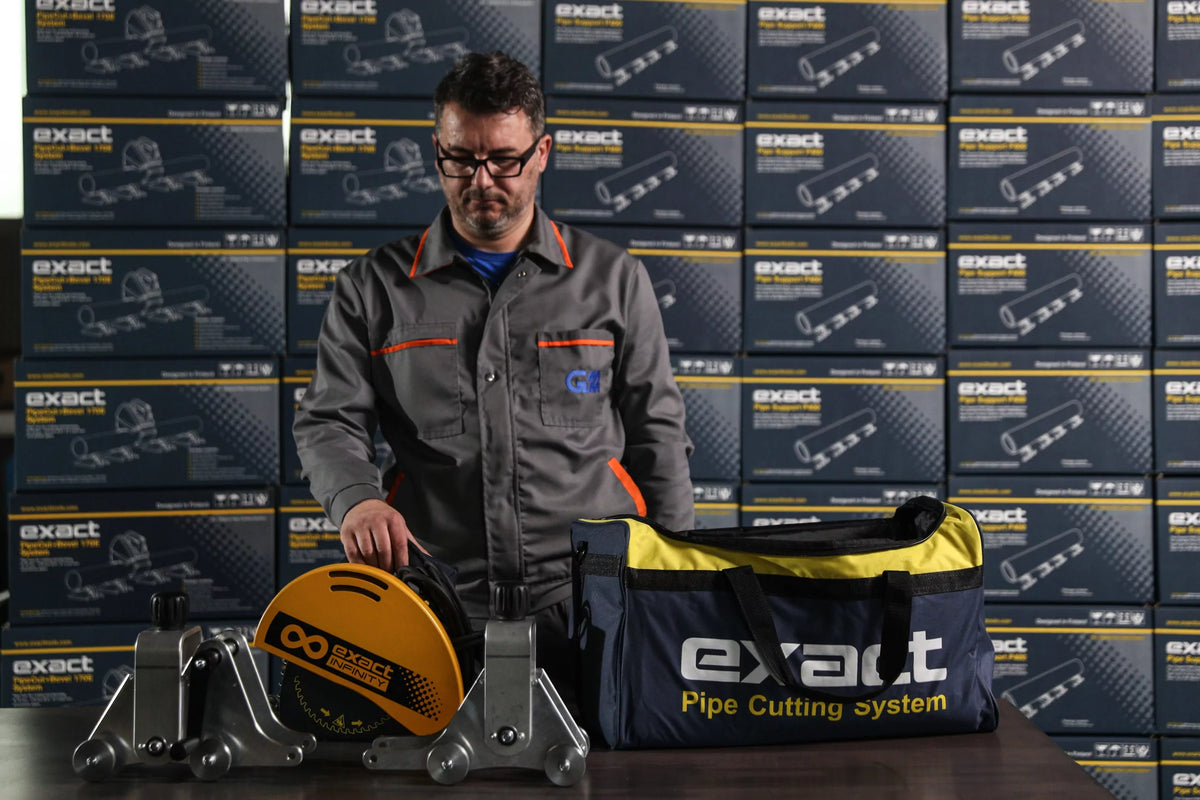

The standard equipment
- Exact PipeCut System Shoulder Bags, 2 pcs

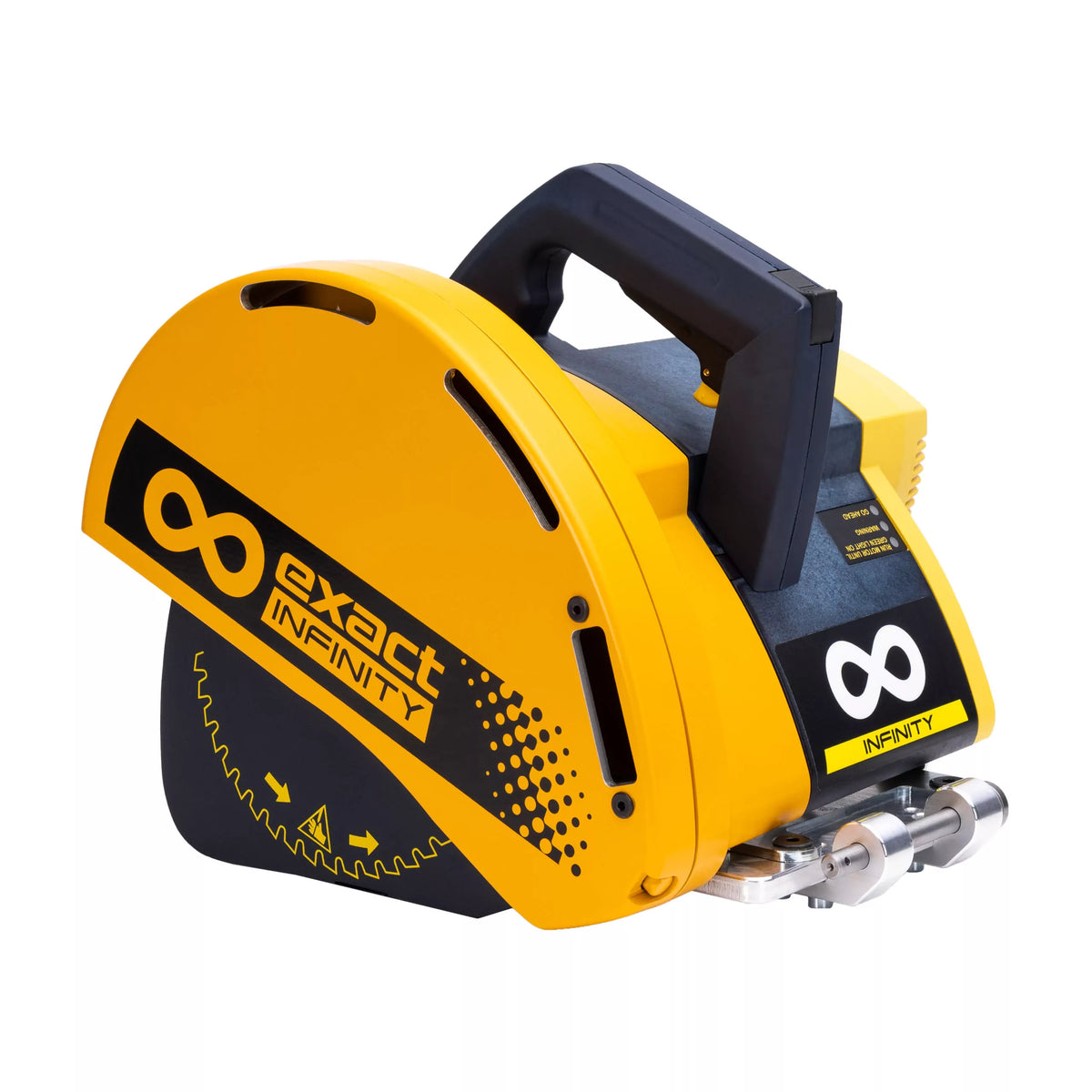

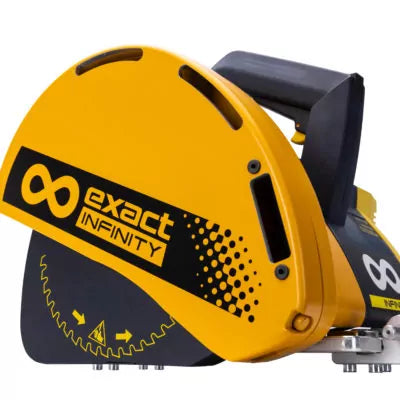

- Exact PipeCut Infinity motor unit with Cermet 165 blade installed

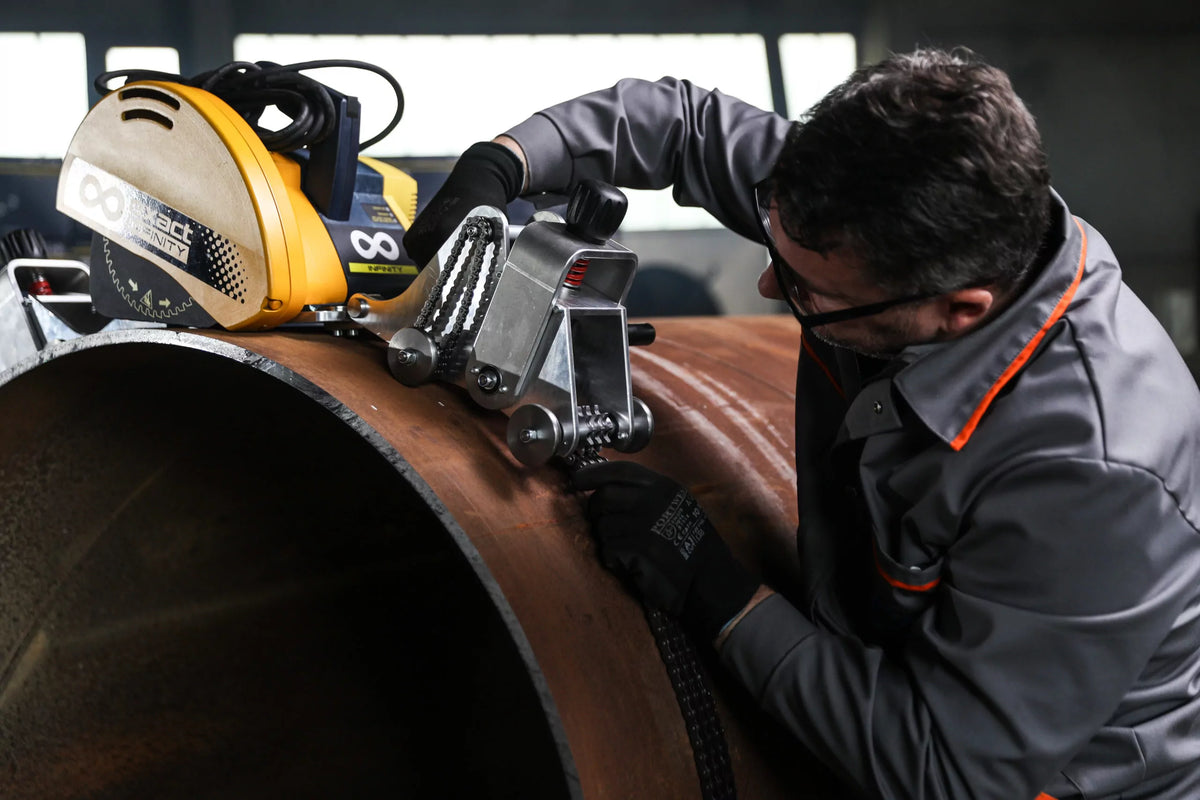

- Tensioner device
- Tensioner device with crank

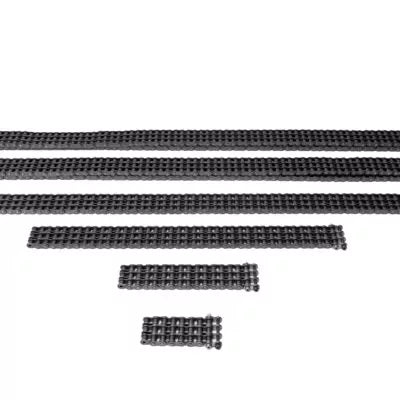

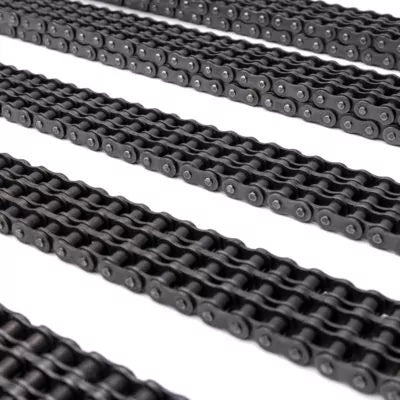

- Chain segments for attaching the saw to pipe:
78”, 2 pcs
39”, 1 pc
20”, 1 pc
8”, 2 pcs
4”, 1 pc - Operating instructions
- Allen keys, 5 mm and 2 mm, attached to saw
Infinity Plus
In addition to the standard equipment the tensioner device is modified to include gearbox for power drill connection. Also a cutting depth adjustment is included.
Infinity Cut+Bevel
In addition to the standard equipment, includes cutting depth adjustment, Cut+Bevel 165 disc, and blade guard for it.
TECHNICAL SPICIFICATION
| Pipe cutting capacity (OD) |
14" to no upper limit |
|---|---|
| Max. wall thickness |
0.5” (12 mm) Steel / 120V, 0.8” (20mm) Steel / 230V |
| Pipe material |
Aluminum, Cast iron, Copper, Ductile (nodular cast iron), Glass fiber, Plastic, Stainless/Inox steel, Steel |
| Blade diameter |
140 mm (5.51”), 165 mm (6.5"), 180 mm (7.2"), 190 mm (7.6") |
| Mounting bore |
2.44” (62mm) |
| No-Load speed |
I (low) = 1900/min, II (high) = 2885 /min |
| Recommended generator capacity |
4,9kVA for 230V, 3kVA for 100 V-120V |
