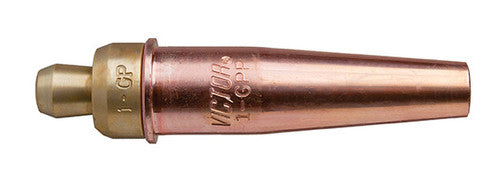

Type GPP Series 3 Cutting Tips Propylene
Type GPP Series 3 Cutting Tips Propylene
Description:--------------Propylene Cutting Tips for manual and mechanized cutting applicationsApplication :CuttingGas Service :PropyleneHighlights:-------------General purposeHand and machine torch cuttingIndustries:-------------Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication
Read full overview
Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
--------------
Propylene Cutting Tips for manual and mechanized cutting applications
Application :
Cutting
Gas Service :
Propylene
Highlights:
-------------
General purpose
Hand and machine torch cutting
Industries:
-------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
Specifications
Gas Tips Operation Data
| Model | Tip Size | Metal Thickness | Cutting Speed | Average Kerf Width | Total Preheat Oxygen Consumption | Gas Pressure - Cutting Oxygen | Gas Pressure - Fuel Gas | Total Fuel Gas Consumption | Total Oxygen Consumption |
|---|---|---|---|---|---|---|---|---|---|
| 0333-0389 | 00 in. | 1/4 in. | 21-25 in./min | 0.04 in. | 23-108 cfh | 20-25 psig | 3-5 psig | 5-7 cfh | 22-.26 cfh |
| 0333-0390 | 0 in. | 3/8 in. | 20-24 in./min | 0.06 in. | 23-108 cfh | 25-30 psig | 3-5 psig | 8-10 cfh | 45-55 cfh |
| 0333-0390 | 0 in. | 1/2 in. | 18-22 in./min | 0.06 in. | 23-108 cfh | 25-30 psig | 3-5 psig | 8-10 cfh | 45-55 cfh |
| 0333-0390 | 0 in. | 3/8 in. | 20-24 in./min | 0.06 in. | 23-108 cfh | 30-35 psig | 3-5 psig | 8-10 cfh | 50-55 cfh |
| 0333-0390 | 0 in. | 1/2 in. | 18-22 in./min | 0.06 in. | 23-108 cfh | 30-35 psig | 3-5 psig | 8-10 cfh | 50-55 cfh |
| 0333-0391 | 1 in. | 3/4 in. | 15-20 in./min | 0.08 in. | 23-108 cfh | 30-35 psig | 4-6 psig | 10-12 cfh | 70-80 cfh |
| 0333-0392 | 2 in. | 1 in. | 14-18 in./min | 0.09 in. | 23-108 cfh | 35-40 psig | 4-8 psig | 12-15 cfh | 115-125 cfh |
| 0333-0392 | 2 in. | 1 1/2 in. | 12-16 in./min | 0.09 in. | 23-108 cfh | 35-40 psig | 4-8 psig | 12-15 cfh | 115-125 cfh |
| 0333-0392 | 2 in. | 1 in. | 14-18 in./min | 0.09 in. | 23-108 cfh | 40-45 psig | 5-9 psig | 12-15 cfh | 125-135 cfh |
| 0333-0392 | 2 in. | 1 1/2 in. | 12-16 in./min | 0.09 in. | 23-108 cfh | 40-45 psig | 5-9 psig | 12-15 cfh | 125-135 cfh |
| 0333-0394 | 4 in. | 3 in. | 8-11 in./min | 0.12 in. | 23-108 cfh | 45-50 psig | 8-12 psig | 16-20 cfh | 210-250 cfh |
Ordering
| Description | Product number |
| 0333-0389 | |
| 0333-0390 | |
| 0333-0391 | |
| 0333-0392 | |
| 0333-0394 | |
| 0333-0393 |
