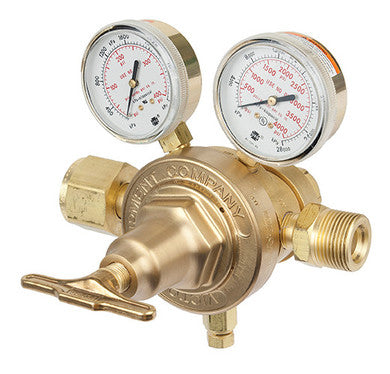

VTS 700 Series High Flow Cylinder Regulator

Description:
---------------
The two stage VTS 700 regulators are designed for heavy duty applications & large cylinders and applications requiring precise & constant outlet pressure with a high flow rate up to 8,000 SCFH.

Max Flow Capacity :
Exceeds 7,000 scfh
Safety Feature :
External Relief Valve, Two Stage Design< Inlet Filter
Warranty :
10 Yrs

Highlights:
------------
Recommended for applications that require a constant delivery pressure during decreasing inlet pressures. This precise two stage regulation provides superior operating characteristics for applications where change in delivery pressure would affect performance characteristics of work or test results.
Brass Adjusting Screw with forged T-handle (VTS 700 only)
Delrin Insert Bushing for durability, easier adjusting
Die-Forged Brass Sprying Housing Cap provides greater strength and durability
Stainless Steel Diaphragm givs accurate long lasting service
Stem-Type Seat Mechanism inlet pressure aides in sealing
Stainless Ball in Key for easy adjustment
Adjusting Spring pretested for quality assurance
Die-Forged Brass Body for extra strength
Precision Machined Nozzle for optimum flow control
Adjusting Spring designed for precise preset
Additional Features
External self reseating relief valve - Not designed to protect downstream equipment (no relief valve is needed on low pressure fuel gas models)
Sintered inlet filter - electroless nickel plated bronze
Regulators will deliver - at least the stated upper range and in some cases may exceed the stated upper range

Industries:
--------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
