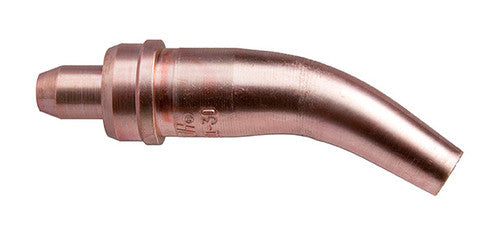

Tyle 101-30 Acetylene Cutting Tips
Tyle 101-30 Acetylene Cutting Tips
Description:---------------Acetylene Cutting Tips - Type 101-30 for manual or mechanized applications with a 30 degree bendApplication :CuttingGas Service :AcetyleneHighlights:-------------General purposeHand and machine torch cutting 30°, with torch perpendicularIndustries:-------------Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication
Read full overview
Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
---------------
Acetylene Cutting Tips - Type 101-30 for manual or mechanized applications with a 30 degree bend
Application :
Cutting
Gas Service :
Acetylene
Highlights:
-------------
General purpose
Hand and machine torch cutting 30°, with torch perpendicular
Industries:
-------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
Specifications
Gas Tips Operation Data
| Model | Tip Size | Metal Thickness | Cutting Speed | Average Kerf Width | Total Acetylene Consumption | Gas Pressure - Acetylene | Total Preheat Oxygen Consumption | Gas Pressure - Cutting Oxygen | Gas Pressure - Preheat Oxygen | Total Oxygen Consumption |
|---|---|---|---|---|---|---|---|---|---|---|
| 0330-0198 | 0 in. | 3/8 in. | 24-28 in./min | .06 in. | 5-8 cfh | 3-5 psig | 5-9 cfh | 25-30 psig | 3-5 psig | 55-60 cfh |
| 0330-0198 | 0 in. | 1/2 in. | 20-24 in./min | .06 in. | 5-8 cfh | 3-5 psig | 5-9 cfh | 25-30 psig | 3-5 psig | 55-60 cfh |
| 0330-0198 | 0 in. | 3/8 in. | 24-28 in./min | .06 in. | 6-10 cfh | 3-5 psig | 7-11 cfh | 30-35 psig | 3-6 psig | 60-65 cfh |
| 0330-0198 | 0 in. | 1/2 in. | 20-24 in./min | .06 in. | 6-10 cfh | 3-5 psig | 7-11 cfh | 30-35 psig | 3-6 psig | 60-65 cfh |
| 0330-0199 | 1 in. | 3/4 in. | 17-21 in./min | .07 in. | 8-13 cfh | 3-5 psig | 9-14 cfh | 30-35 psig | 4-7 psig | 80-85 cfh |
| 0330-0284 | 2 in. | 1 in. | 15-19 in./min | .09 in. | 10-16 cfh | 3-6 psig | 11-18 cfh | 35-40 psig | 4-9 psig | 140-150 cfh |
Ordering
| Description | Product number |
| 0330-0198 | |
| 0330-0199 | |
| 0330-0284 |
