Specifications
| Manufacturer | Victor |
|---|
Technical documentation
Need a datasheet or certificate?
Request the documents required for your exact model and application. Our team can confirm which files are available.
Request product documents →Product overview
Description:
--------------

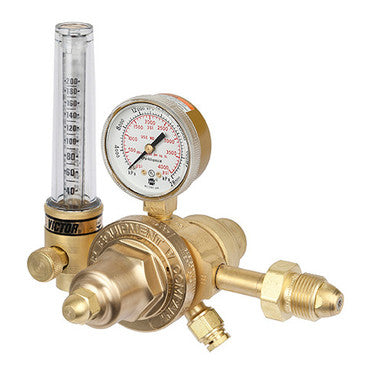

Victor offers a range of products for the delivery of shielding gas in the arc welding process or any application where gas flow rates, versus delivery pressure, are the primary consideration. These products are available for pure or mixed gases.
Max Flow Capacity: Up to 65 scfh Ar/Mix / 200 scfh He
Pressure Compensation: 25 psig (Ar, He, Mixes), 80 psig CO2
Gas Service: Ar / CO2 / He / Mixes
Highlights:
--------------
Single or two stage design
Compact in size
Accurate regulator for gas flow
MIG / TIG applications - Low surge rates – 25 PSI preset
Two stage version provides extremely accurate flow rates as cylinder pressure declines
WARNING: High gas withdrawal rates on carbon dioxide may require cylinder manifolding. Consult your gas supplier.
Industries:
-------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
--------------
Victor offers a range of products for the delivery of shielding gas in the arc welding process or any application where gas flow rates, versus delivery pressure, are the primary consideration. These products are available for pure or mixed gases.
Max Flow Capacity: Up to 65 scfh Ar/Mix / 200 scfh He
Pressure Compensation: 25 psig (Ar, He, Mixes), 80 psig CO2
Gas Service: Ar / CO2 / He / Mixes
Highlights:
--------------
Single or two stage design
Compact in size
Accurate regulator for gas flow
MIG / TIG applications - Low surge rates – 25 PSI preset
Two stage version provides extremely accurate flow rates as cylinder pressure declines
WARNING: High gas withdrawal rates on carbon dioxide may require cylinder manifolding. Consult your gas supplier.
Industries:
-------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication
Specifications
Gas Regulators
| Cylinder Gas | Model | Maximum Inlet Pressure | CGA Inlet | CGA Outlet | Capacity |
|---|---|---|---|---|---|
| - | HSR 1470-680 | 3000 psig | 680 | - | |
| - | HSR2533 | 3000 psig | 350 | 9/16" – 18 M LH | 5-40||CFH cfh |
| Argon,Argon/CO2 Mix, Helium | HVTS 2570 | - | - | 20-150 cfh | |
| - | HVTS2570 | 3000 psig | 580 | 5/8"-18 RH F | 20-150 cfh |
| - | HVTS 2537 | 3000 psig | 580 | 5/8-18" | |
| - | HSR2537 | 3000 psig | 580 | 5/8"-18 RH F | |
| - | HSR2530 | 3000 psig | 580 | 5/8"-18 RH F | 10-60 cfh |
| - | HSR 2570 | 3000 psig | 580 | 5/8-18" | |
| - | HSR2570 | 3000 psig | 580 | 5/8"-18 RH F | 4-4 cfh |
| - | HSR2535 | 3000 psig | 580 | 5/8"-18 RH F | |
| - | HVTS 2535 | 3000 psig | 580 | 5/8-18" | |
| - | HSR2570 | 3000 psig | 580 | 5/8"-18 RH F | 5-50 cfh |
| - | HSR 2533 | 3000 psig | 350 | - | |
| - | HVTS 2570 | 3000 psig | 580 | 5/8-18" | |
| - | HVTS2537 | 3000 psig | 580 | 5/8"-18 RH F | |
| Argon,Argon/CO2 Mix, Helium | HSR 2570 | - | - | 5-40 cfh | |
| - | HVTS2535 | 3000 psig | 580 | 5/8"-18 RH F | |
| Nitrogen | HSR2530 | 3000 psig | 580 | 5/8"-18 RH F | 10-60 cfh |
| Argon | HVTS 2537 | - | - | 15-65 cfh | |
| Argon | HVTS2535 | - | - | 4-18 cfh | |
| Argon | HVTS2537 | - | - | 15-65 cfh | |
| Argon | HSR2537 | - | - | 15-65 cfh | |
| Argon | HVTS 2535 | - | - | 4-18 cfh | |
| Argon | HSR2535 | - | - | 4-18 cfh | |
| Helium | HVTS2537 | - | - | 40-200 cfh | |
| Helium | HVTS 2535 | - | - | 10-50 cfh | |
| Helium | HSR2537 | - | - | 40-200 cfh | |
| Helium | HVTS 2537 | - | - | 40-200 cfh | |
| Helium | HSR2535 | - | - | 10-50 cfh | |
| Helium | HVTS2535 | - | - | 10-50 cfh | |
| Hydrogen | HSR 2533 | - | - | 5-40 cfh | |
| Inert | HSR 1470-680 | - | - | 50-140-40 cfh |
Ordering
| Description |
|
|
|
|
| 0781-3774 | |
| 0781-3775 | |
| 0781-3819 | |
| 0781-3825 | |
| 0781-3867 | |
| 0781-3869 | |
| 0781-3871 | |
| 0781-3873 | |
| 0781-3880 |
