Victor

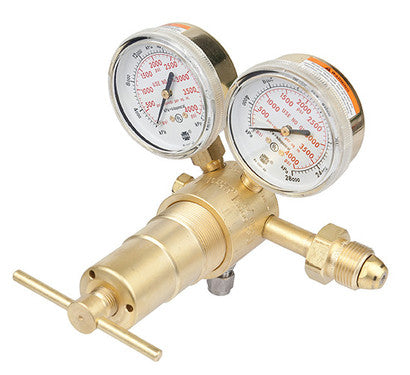

SR 4 Series High Pressure Cylinder Regulator

SR 4 Series High Pressure Cylinder Regulator

Description:---------------The SR4 regulators are designed for heavy duty applications & for larger cylinders and ideally suited for pressure vessel testing.Pressure Range :Up to 4500 psi DeliverySafety Feature :External Relief Valve, Inlet FilterWarranty :10 YrsHighlights:--------------Heavy duty, high pressure piston regulator. Ideally suited for pressure vessel and dead-end testing. Delivery pressures up to 4500 PSIG on some models. DESIGN/CONSTRUCTIONMachined brass body & housing cap2.5" (63.5 mm) gauges – brassCartridge type seat assembly with PCTFE seatPiston type actuation – brassDelrin cap bushing for smooth adjustmentsExternal adjustable relief valves on F and G range modelsHydrogen models have ventable relief valves (J Series does not)Sintered inlet filter – bronzePanel Mounting Details All SR 4 Series regulator models may be panel mounted. (1.75" (44.5 mm) hole required in panel for mounting) For a flush panel mount installation order one panel mount nut 1409- 0093. For an adjustable panel mount installation order two panel mount nuts 1409-0093.Industries:-------------Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication

Read full overview
Quote only Price on request Pricing and commercial terms are confirmed for the selected configuration.

Out of stock

Saved on this browser. Open a product to see current price and availability.
  • Delivery planningConfirm lead time and destination with our team.
  • Technical documentationAsk about datasheets and required certificates.
  • Project procurementSend quantities and specifications for a quotation.
  • Returns informationRead our returns policy
View full details

Specifications

ManufacturerVictor

Technical documentation

Need a datasheet or certificate?

Request the documents required for your exact model and application. Our team can confirm which files are available.

Request product documents →

Product overview

Description:
---------------
The SR4 regulators are designed for heavy duty applications & for larger cylinders and ideally suited for pressure vessel testing.

Pressure Range :
Up to 4500 psi Delivery
Safety Feature :
External Relief Valve, Inlet Filter
Warranty :
10 Yrs

Highlights:
--------------
Heavy duty, high pressure piston regulator. Ideally suited for pressure vessel and dead-end testing. Delivery pressures up to 4500 PSIG on some models. DESIGN/CONSTRUCTION
Machined brass body & housing cap
2.5" (63.5 mm) gauges – brass
Cartridge type seat assembly with PCTFE seat
Piston type actuation – brass
Delrin cap bushing for smooth adjustments
External adjustable relief valves on F and G range models
Hydrogen models have ventable relief valves (J Series does not)
Sintered inlet filter – bronze
Panel Mounting Details All SR 4 Series regulator models may be panel mounted. (1.75" (44.5 mm) hole required in panel for mounting) For a flush panel mount installation order one panel mount nut 1409- 0093. For an adjustable panel mount installation order two panel mount nuts 1409-0093.

Industries:
-------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication

Specifications


Gas Regulators

Cylinder Gas Model Delivery Range Maximum Delivery Pressure Maximum Inlet Pressure CGA Inlet CGA Outlet
- SR4J-540 200-3000 psig 3000 psig 540 1/4" Swaglok®
- SR4K-347 300-4500 psig 5500 psig 347 1/4" Swagelok
- SR4J-580 200-3000 psig 3000 psig 580 1/4" Swagelok
- SR4J-677 200-3000 psig 7500 psig 677 1/4" Swagelok
- SR4F-580 50-750 psig 3000 psig 580 1/4" Swagelok®
- SR4G-680 100-1500 psig 5500 psig 680 1/4" Swagelok
Methane, Hydrogen SR 4J-350 200-3000 psig - 1/4"
- SR4G-580 100-1500 psig 3000 psig 580 1/4" Swagelok
- SR4J-680 200-3000 psig 5500 psig 680 1/4" Swagelok
Methane, Hydrogen SR 4G-350 100-1500 psig - 1/4"
- SR4G-350 100-1500 psig 3000 psig 350 1/4" Swagelok
- SR4F-540 30-750 psig 3000 psig 540 1/4" Swaglok®
- SR4K-677 300-4500 psig 7500 psig 677 1/4" Swagelok
Methane, Hydrogen SR 4F-350 50-750 psig - 1/4"
- SR4F-347 50-750 psig 5500 psig 347 1/4" Swagelok®
- SR4K-680 300-4500 psig 5500 psig 680 1/4" Swagelok
- SR4J-350 200-3000 psig 3000 psig 350 1/4" Swagelok
- SR4G-346 100-1500 psig 3000 psig 346 1/4" Swagelok
- SR4F-680 50-750 psig 5500 psig 680 1/4" Swagelok
- SR4J-346 200-3000 psig 3000 psig 346 1/4" Swagelok
- SR4F-320 50-750 psig 3000 psig 320 CGA 032 5/8" – 18 UNF
- SR4G-540 100-1500 psig 3000 psig 540 1/4" Swaglok®
- SR4F-350 50-750 psig 3000 psig 350 1/4" Swagelok®
Oxygen SR 4J-540 200-3000 psig - 1/4"
Oxygen SR 4G-540 100-1500 psig - 1/4"
Oxygen SR 4F-540 50-750 psig 5500-7500 psig - 1/4"
Inert Gas SR 4G-680 100-1500 psig - 1/4"
Inert Gas SR 4F-580 50-750 psig - 1/4"
Inert Gas SR 4J-580 200-3000 psig - 1/4"
Air SR 4F-347 50-750 psig - 1/4"
Air SR 4J-346 200-3000 psig - 1/4"
Air SR 4K-347 300-4500 psig - 1/4"
Air SR 4G-346 100-1500 psig - 1/4"
CO2 SR 4F-320 50-750 psig - 1/4"


Ordering

Description Product number
Victor Professional High Pressure SR 4, High Capacity, F (750 PSIG), Carbon Dioxide, 320, 1/4" Stainless Tube Fitting 0781-1401
Victor Professional High Pressure SR 4, High Capacity, F (750 PSIG), Air, 347, 1/4" Stainless Tube Fitting 0781-1403
0781-1404
0781-1405
0781-1408
0781-1410
0781-1415
0781-1420
0781-1422
0781-1424
0781-1425
0781-1428
0781-1430
0781-1442
0781-1444
0781-1445
0781-1448
0781-1450
0781-1453
0781-1455
0781-1463
0781-1470
0781-1473
0781-1475
