Victor

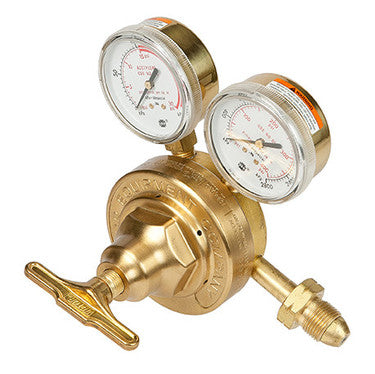

SR 450 Series Cylinder Regulator

SR 450 Series Cylinder Regulator

Description:--------------Recommended for applications where slight delivery pressure increases (due to decreasing cylinder pressures) would not affect the performance characteristics of the work or test results. The SR450 regulators are designed for heavy to high capacity.Pressure Range: Up to 200 psi DeliverySafety Feature: External Relief Valve, Inlet FilterWarranty: 10 YrsHighlights:--------------Heavy duty gas control. Tried and true brass design delivers excellent gas control characteristics that meets the demands of precise cutting, welding and heating applications.Industries:--------------Industrial and General FabricationRepair and MaintenanceStructural Steel FabricationLight Fabrication

Read full overview
Quote only Price on request Pricing and commercial terms are confirmed for the selected configuration.

Out of stock

Saved on this browser. Open a product to see current price and availability.
  • Delivery planningConfirm lead time and destination with our team.
  • Technical documentationAsk about datasheets and required certificates.
  • Project procurementSend quantities and specifications for a quotation.
  • Returns informationRead our returns policy
View full details

Specifications

ManufacturerVictor

Technical documentation

Need a datasheet or certificate?

Request the documents required for your exact model and application. Our team can confirm which files are available.

Request product documents →

Product overview

Description:
--------------
Recommended for applications where slight delivery pressure increases (due to decreasing cylinder pressures) would not affect the performance characteristics of the work or test results. The SR450 regulators are designed for heavy to high capacity.

Pressure Range: Up to 200 psi Delivery
Safety Feature: External Relief Valve, Inlet Filter
Warranty: 10 Yrs

Highlights:
--------------
Heavy duty gas control. Tried and true brass design delivers excellent gas control characteristics that meets the demands of precise cutting, welding and heating applications.

Industries:
--------------
Industrial and General Fabrication
Repair and Maintenance
Structural Steel Fabrication
Light Fabrication

Specifications



Gas Regulators

Cylinder Gas Model Delivery Range Maximum Delivery Pressure Maximum Inlet Pressure CGA Inlet CGA Outlet
Air, Oxygen, Inert Gas SR 450D-580 5-125 psig 3000 psig - 9/16-18"
- SR461B-510 2-40 psig 350 psig 510 9/16" – 18 M LH
- SR461D-510 5-125 psig 350 psig 510 9/16" – 18 M LH
Air, Oxygen, Inert Gas SR 450D-540 5-125 psig 3000 psig - 9/16-18"
- SR450D-580 5-125 psig 3000 psig 580 5/8" – 18 F RH
- SR460A-300 2-15 psig 3000 psig 300 9/16" – 18 M LH
Air, Oxygen, Inert Gas SR 450E-580 10-200 psig 3000 psig - 9/16-18"
- SR-450D-540 5-125 psig 3000 psig 540 9/16" – 18 M RH
- SR460A-510 2-15 psig 3000 psig 510 9/16" – 18 M LH
- SR450D-346 5-125 psig 3000 psig 346 5/8" – 18 F LH
- SR450E-580 10-200 psig 3000 psig 580 5/8" – 18 F RH
Acetylene SR 460A-300 2-15 psig 3000 psig - 9/16-18"
Acetylene SR 460A-510 2-15 psig 3000 psig - 9/16-18"
L.P. Gas SR 461D-510 5-125 psig 3000 psig - 9/16-18"
L.P. Gas SR 461B-510 2-40 psig 3000 psig - 9/16-18"



Ordering

 Description
0781-0527
0781-0528
0781-0532
0781-0543
0781-0583
0781-0584
0781-0589
0781-0595
